Toughpower SFX 450W Gold

Incorporating various high-quality components, Toughpower SFX 450W Gold saves energy through its 80 PLUS Gold certified high efficiency of up to 90% and accommodates any mainstream build. The included matte black SFX to ATX adapter bracket enables users to easily install SFX Power supply into ATX chassis. Additionally, an embedded temperature controlled Zero RPM Smart Fan System is optimized to deliver excellent airflow at an exceptionally low noise level. Fully modular flat cable design is convenient for cable management. Moreover, the powerful single +12V rail enables non-stop usage with stable and reliable performance.

80 PLUS Gold Certified and Kaby Lake Ready

Deliver up to 90% efficiency under real world load conditions to promise lowest power losses. Additionally, Toughpower SFX 450W Gold has been optimized to work with Intel’s new 6th-generation Kaby Lake processors to achieve maximum energy savings.

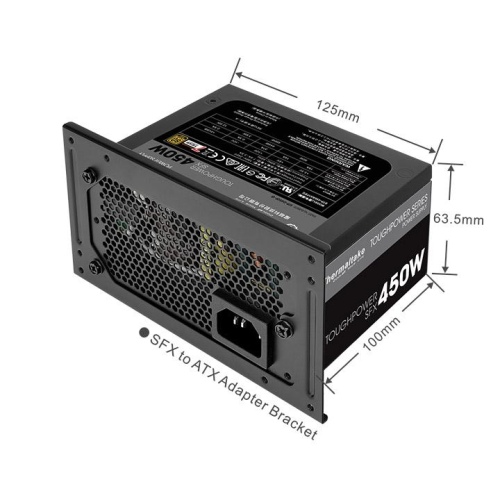

Universal Compact Design for All Mainstream PC Cases – SFX to ATX PSU Adapter Bracket

Toughpower SFX 450W Gold is designed with two-way application by the compatibility of both the latest Intel SFX 12V 3.3 and ATX 12V 2.4 standard. Toughpowr SFX Series has included a matte black SFX to ATX adapter bracket which helps users easily install an SFX power supply into an ATX, Micro-ATX or Mini-ITX chassis. In addition, with the compact design, Toughpower SFX Series allows better airflow inside the chassis as well as leaves more space for users to utilize.

Zero RPM Smart Fan

To maximally reduce undesired noise, Toughpower SFX 450W Gold is designed with an 80mm temperature controlled Zero RPM Smart Fan. The fan will not operate when the PSU is at low working loads.

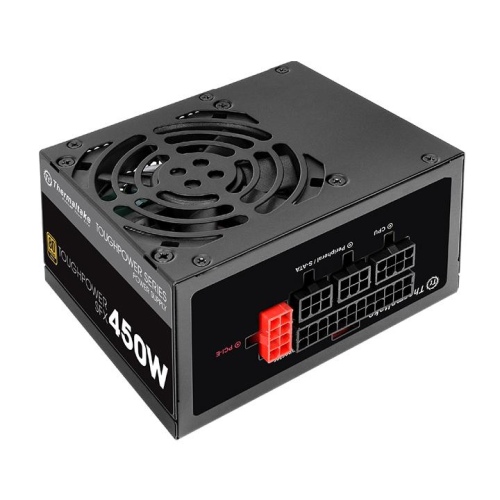

Product Image

Specifications

  • WATTS

    450W

  • RGB FAN

    No

  • Form Factor

    SFX

  • TYPE

    Intel SFX 12V 3.3 and ATX 12V 2.4

  • MAX. OUTPUT CAPACITY

    450W

  • PEAK OUTPUT CAPACITY

    540W

  • COLOR

    Black

  • PFC (POWER FACTOR CORRECTION)

    Active PFC

  • POWER GOOD SIGNAL

    100-500 msec

  • HOLD UP TIME

    > 16msec at 75% of full load

  • INPUT CURRENT

    3.5A – 7A

  • INPUT FREQUENCY RANGE

    50Hz - 60Hz

  • Input Voltage

    100V - 240V

  • OPERATING TEMPERATURE

    0 ℃ to +40℃

  • OPERATING HUMIDITY

    20% to 85%,non-condensing

  • STORAGE TEMPERATURE

    -20 ℃ to +90 ℃

  • STORAGE HUMIDITY

    5% to 95%, non-condensing

  • COOLING SYSTEM

    8cm fan

  • EFFICIENCY

    MEET 80 PLUS®Gold at 115Vac input.

  • MTBF

    120,000 hrs minimum

  • SAFETY APPROVAL

    CE/FCC/UL/Bauart Mark+CB/EAC

  • PCI-E 6+2PIN

     2

  • Protection

    OCP, OVP, OPP, SCP
