The Tower 500 Mid Tower Chassis

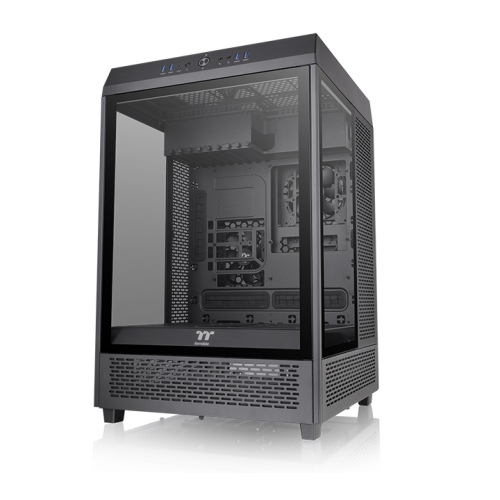

The Tower 500 is a vertically designed case with three 4mm tempered glass panels for panoramic viewing, along with two pre-installed 120mm standard fans. This chassis supports up to 12" x 12" E-ATX motherboards giving you comprehensive flexibility for enhanced expansion options. It can also be paired with a separately sold LCD panel kit with a 3.9" LCD Display for maximizing the PC's visual effects.

Space is never a problem

Whether you’re a creator, enthusiast, gamer, or simply a regular user, the Tower 500 is designed for you.

Modeled after our legendary Tower 900 super chassis, the Tower 500 was created with the direction of inheriting all the significant functions while minimizing the overall footprint. On top of that, the Tower 500 allows additional support for an All-In-One liquid cooler, support for an E-ATX motherboard (max 12”x 12”), or any ATX motherboard. Users can build their PC the way they want.

Create and display your dream build

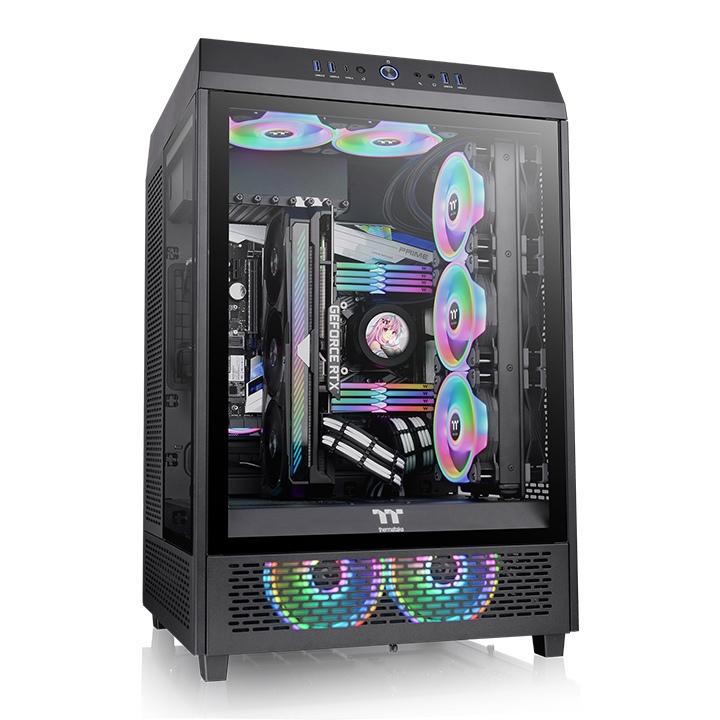

The Tower 500’s versatile interior is designed to suit the needs of both all-in-one and custom liquid cooling solutions, and it offers three 4mm tempered glass panels located at the front and sides, serving simultaneous protection while allowing the perfect showcase of your internal components.

Visually pleasing, totally interactive

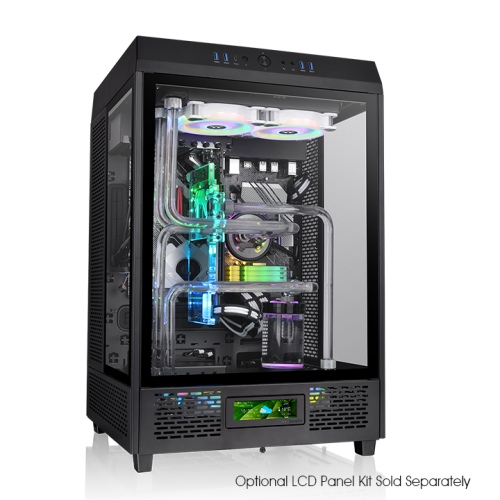

Maximize your Tower 500’s visual effects by upgrading it with our optimal LCD Panel Kit.

The 3.9” LCD Display allows you to monitor real-time information and upload any images or GIFs to add extra flair using the TT RGB Plus 2.0 software. It also allows you to interact with the cooling components that feature the same LCD displays. The latest version includes climate mode and time mode for users to expand the usage of our LCD displays.

Product Image

Specifications

  • SERIES

    The Tower

  • CASE TYPE

    The Tower

  • DIMENSION (H X W X D)

    608 x 388 x 398 mm
    (23.9 x 15.3 x 15.7 inches)

  • NET WEIGHT

    14.8 kg / 32.6 lbs.

  • PANEL

    4mm Tempered Glass x 3

  • COLOR

    Black

  • MATERIAL

    SPCC

  • COOLING SYSTEM

    Rear(exhaust):
    120 x 120 x 25 mm Standard fan (1500rpm, 35.8 dBA) x 2

  • Drive Bays

    4 x 3.5”, 8 x 2.5”
    or 8 x 3.5”

  • Expansion Slots

    9

  • MOTHERBOARDS

    6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX),
    12” x 9.6” (ATX), 12” x 12” (E-ATX)

  • I/O Ports

    USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 4, HD Audio x 1

  • PSU

    Standard PS2 PSU (optional)

  • FAN SUPPORT

    Top:
    2 x 120mm, 1 x 120mm
    2 x 140mm, 1 x 140mm
    Right Side:
    3 x 120mm, 2 x 120mm, 1 x 120mm
    Rear:
    2 x 120mm, 1 x 120mm
    2 x 140mm, 1 x 140mm
    Power Cover:
    2 x 120mm, 1 x 120mm
    2 x 140mm, 1 x 140mm
    Bottom(Vertical/Horizontal):
    2 x 120mm, 1 x 120mm

  • RADIATOR SUPPORT

    Top:
    1 x 240mm, 1 x 120mm
    1 x 280mm, 1 x 140mm
    Right Side:
    1 x 360mm or 1 x 360mm Custom LCS radiator (max length 399mm), 1 x 240mm, 1 x 120mm
    Bottom(Vertical/Horizontal):
    1 x 240mm, 1 x 120mm

  • CLEARANCE

    CPU cooler height limitation:
    275mm
    VGA length limitation:
    325mm(With power cover)
    355mm(Without power cover)
    PSU length limitation:
    200mm
