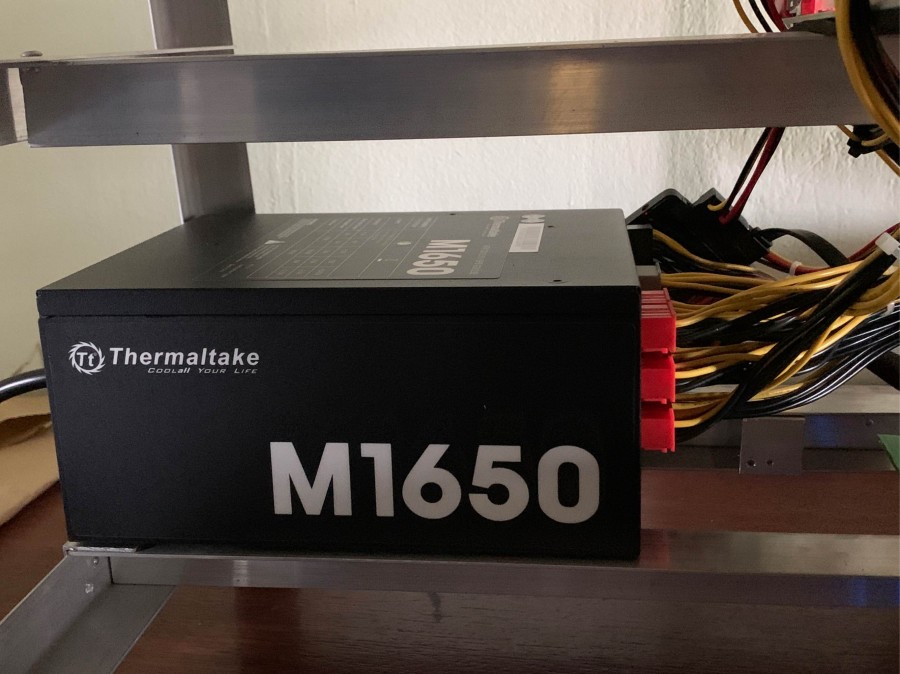

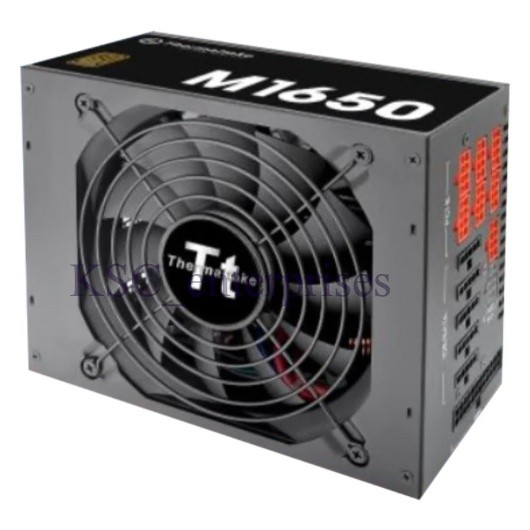

PSU Thermaltake M1650

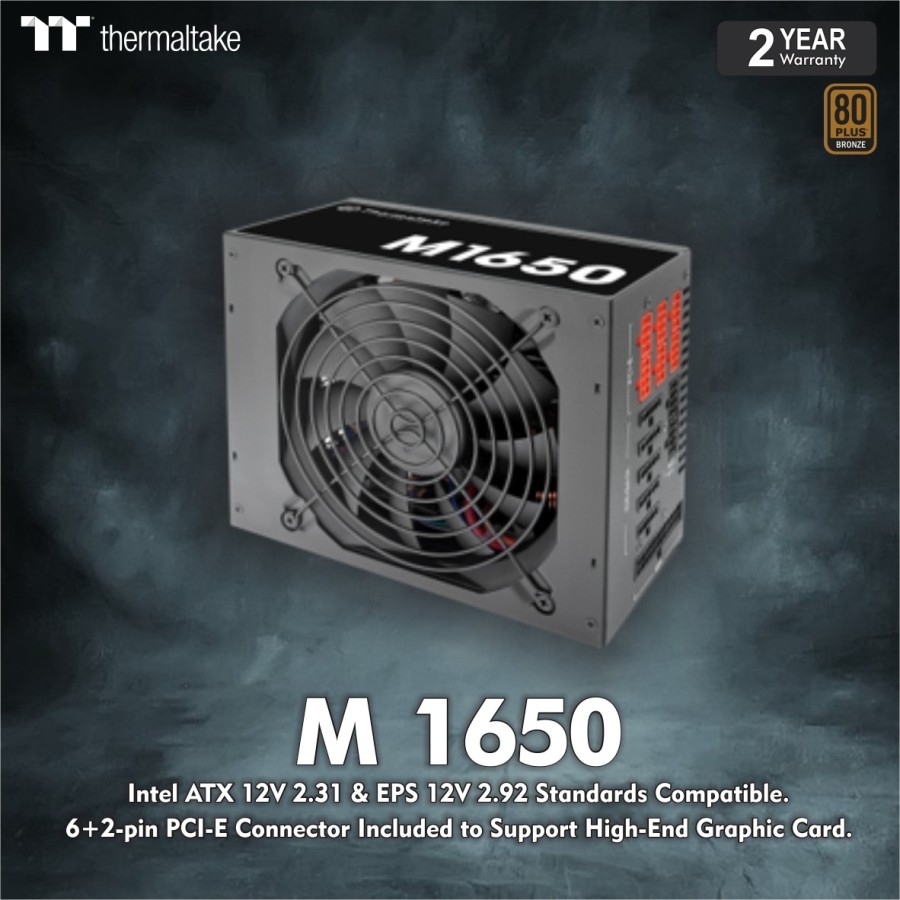

- Intel ATX 12V 2.31 & EPS 12V 2.92 standards compatible
- 6+2 pin PCI-E connector Included to support high-end graphic card.
- Stable output and excellence performance.
- Build-in Over Voltage, Over Power and Short-Circuit protection.
Specifications
-
MAX. OUTPUT CAPACITY
1650W
-
COLOR
Black
-
P.G.Signal
100 - 500 ms
-
PFC (POWER FACTOR CORRECTION)
Active PFC
-
COOLING SYSTEM
14cm fan
-
Over voltage Protection
+5V output : 5.74V-7Vmax
+3.3V output : 3.76v-4.3Vmax
+12v output : 1304V-15.6Vmax
-
Unit Size
18.5cmL)x15cm(W)x8.6cm(H)
-
Input Voltage
200-240Vac
-
INPUT CURRENT
15A max
-
INPUT FREQUENCY RANGE
50Hz
-
Hold-up Time
16ms(minimum) at 80% load
-
Operating Temperatures
5°C to + 25°C
-
OPERATING HUMIDITY
20% to 85%, relative humidity
-

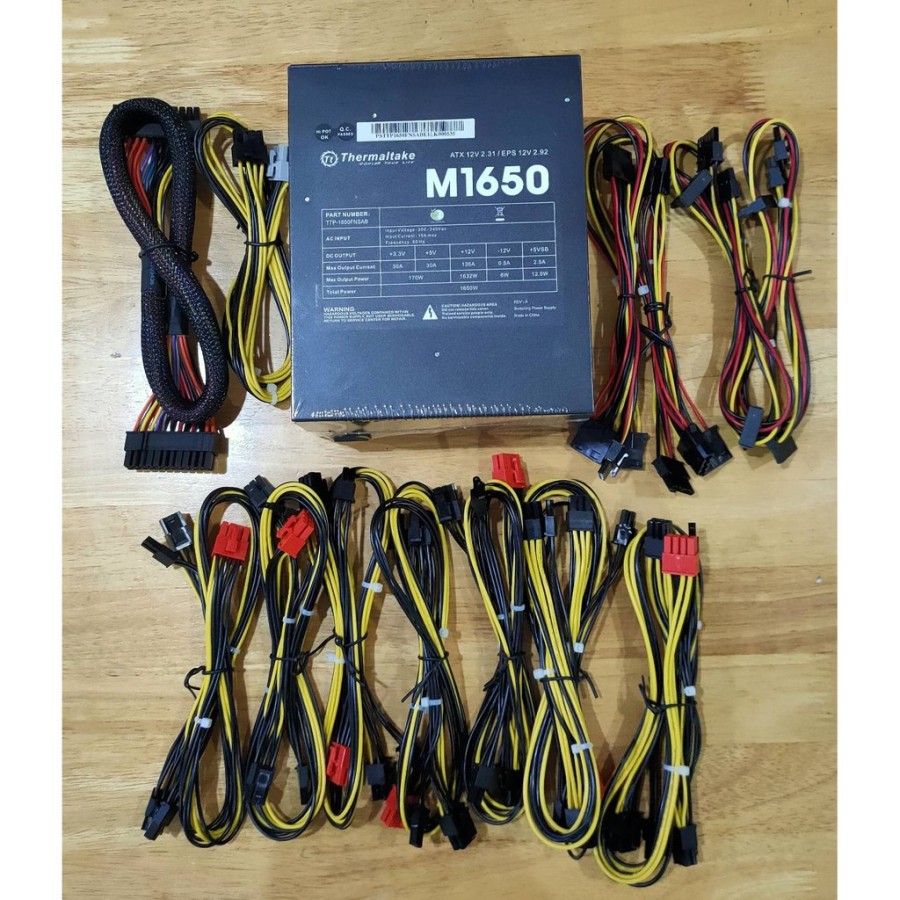

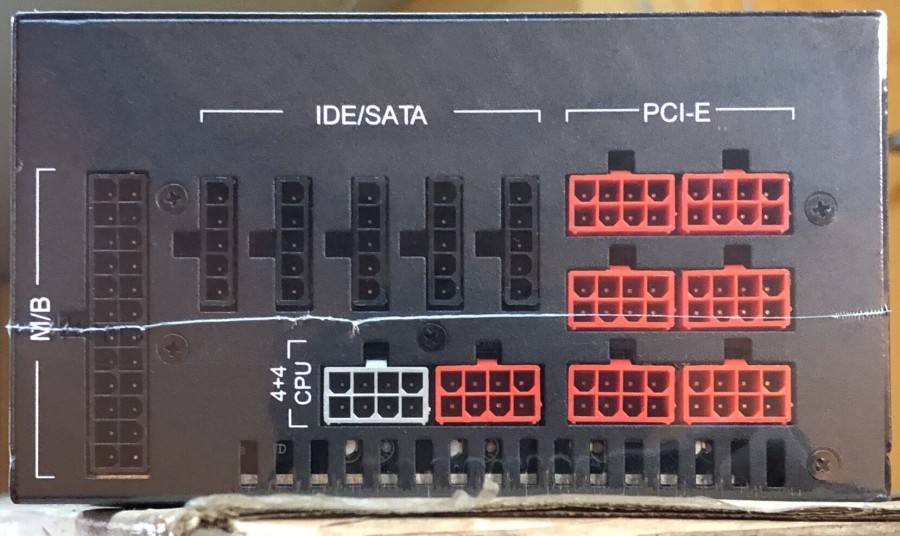

Output Connector
1X 20+4 Pin Main connector
1X 4+4 - Pin +12v Power Connector
6x 4-PIN Peripheral Connector
6x 5-pin SATA Connector
16x 6+2 Pin PCI Express Connector
