MAG PANO M100R PZ BLACK / WHITE

Micro-ATX Back-connect PROJECT ZERO motherboard supported.
Supports up to 360 mm AIO liquid cooler on the top.
270-degree panoramic tempered glass.
Supports up to 10 x 120 mm system fans.
Built-in 1-to-4 ARGB-PWM fans and control board, providing striking lighting and vivid lighting effects.
The Magnetic Dust Filter at the bottom being easily removed for cleaning.
DIY Friendly cables make your DIY process easier and create more possibilities to your system.

Specifications

PRODUCT NAME

MAG PANO M100R PZ / WHITE
Case Form Factor

Micro- ATX Tower
MOTHERBOARD FORM FACTOR SUPPORT

M-ATX (Back-connect supported) / ITX
I/O Ports

- 1 x USB 3.2 Gen 1 Type-A
- 1 x USB 3.2 Gen 2x2 Type-C
- 1 x Audio-Out / Mic-in
- 1 x LED Switch Button
- 1 x Power Button
DRIVE MOUNT SUPPORT

- 1 x 2.5”
- 1 x 2.5”/3.5” combo (up to 2 x 2.5” or 1 x 2.5”+ 1 x 3.5”)
Expansion Slots

5
Maximum GPU Length

- 390 mm / 15.35 inches *Support
- horizontal installation only.
MAXIMUM CPU COOLER HEIGHT

175 mm / 6.9 inches
POWER SUPPLY SUPPORT

ATX
MAXIMUM PSU LENGTH

200 mm / 7.87 inches
Fan Size Support

- Top: 3 x 120 mm / 2 x 140 mm
- Front: NA
- Rear: 1 x 120 mm / 1 x 140 mm
- Side: 3 x 120 mm
- Bottom: 1 x 120 mm
- PSU Shroud: 2 x 120 mm
Pre-installed Fan Size Side

- 3 x 120 mm
- Rear: 1 x 120 mm
Pre-installed Fan Type Side

- 3 x ARGB Fan (Reverse-blade)
- Rear: 1 x ARGB Fan
DIMENSIONS (DXWXH)

- 440 x 235 x 405 mm / 17.32 x 9.25 x
- 15.94 inches
RADIATOR SIZE SUPPORT

- Top: 120 / 240 / 360 mm
- Front: NA
- Rear: 120 / 140 mm
- Side: NA
- Bottom: NA
NET WEIGHT

8.66 kg
GROSS WEIGHT

11.29 kg

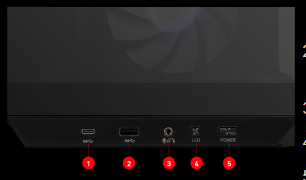

CONNECTION

1. 1x USB 3.2 Gen 2x2 Type-C
2. 1x USB 3.2 Gen 1 Type-A
3. Mic In/ Audio Out
4. LED Switch Button
5. Power Button
