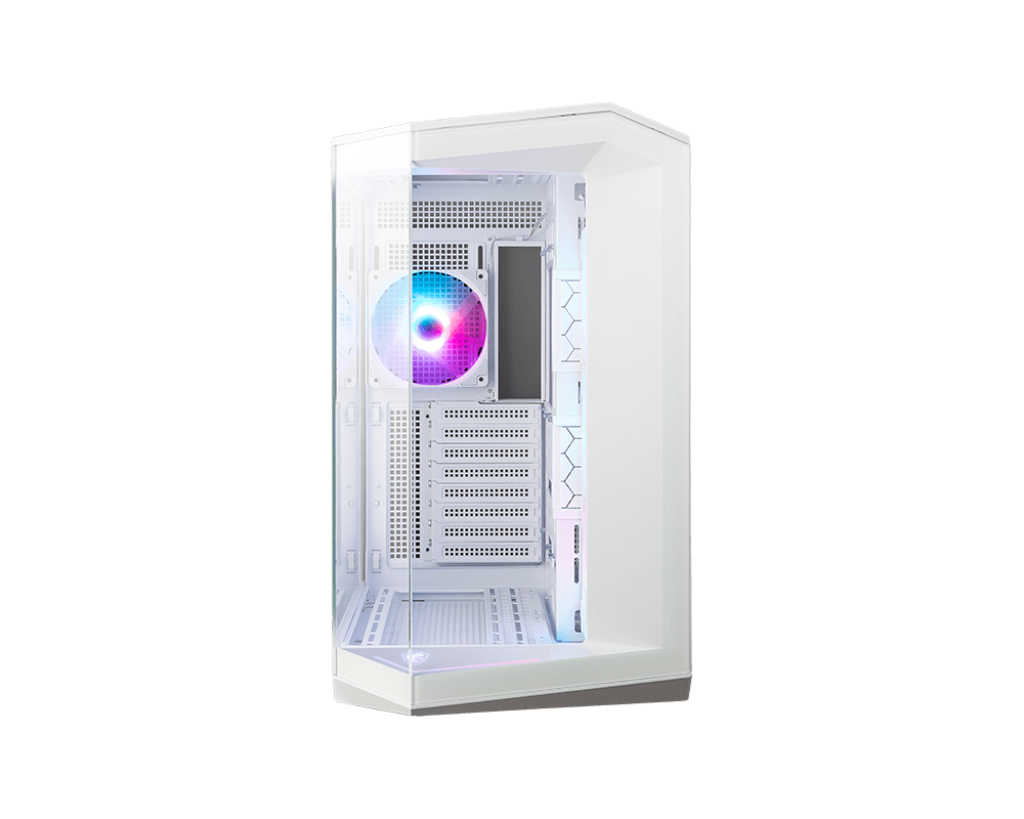

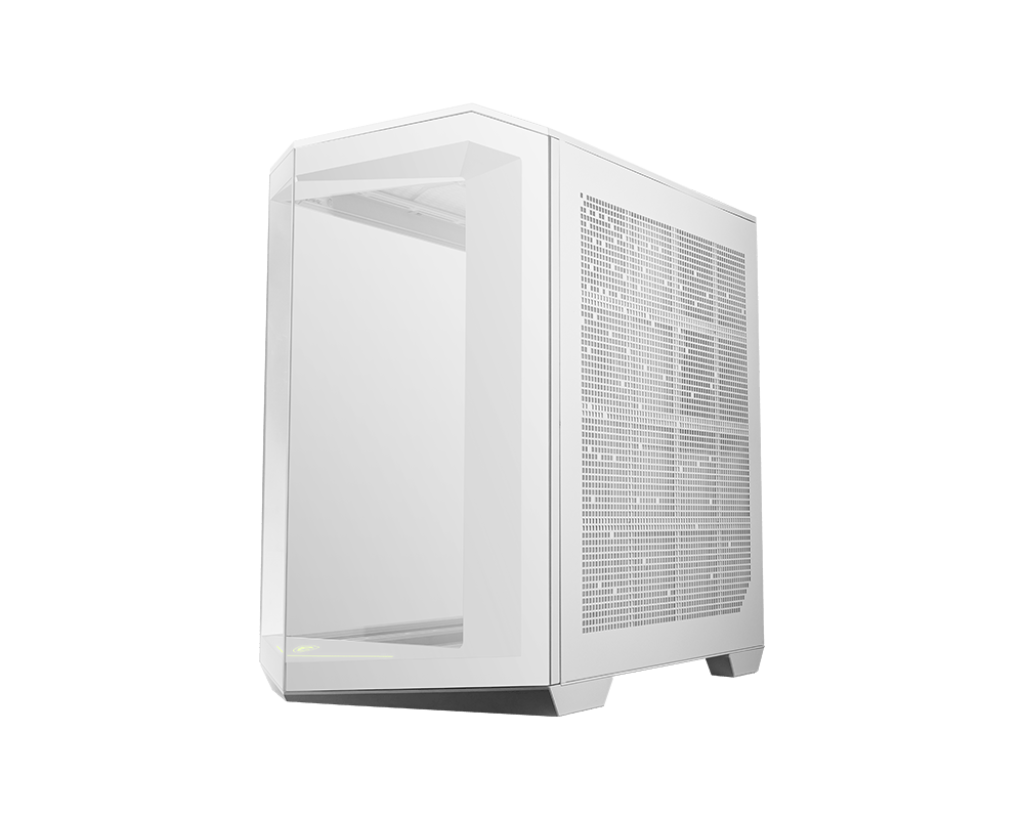

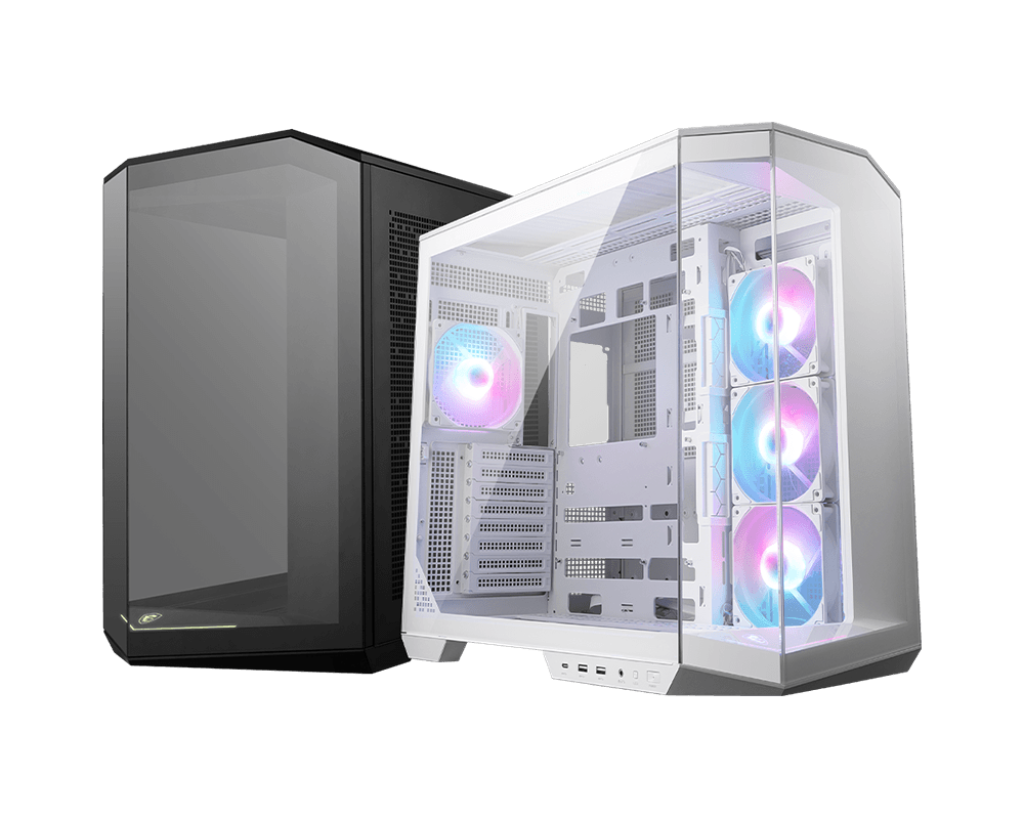

MAG PANO 100R PZ BLACK / WHITE

Supported ATX and Micro-ATX Back-connect motherboard.
Supports 360 mm radiator on the top, side and bottom

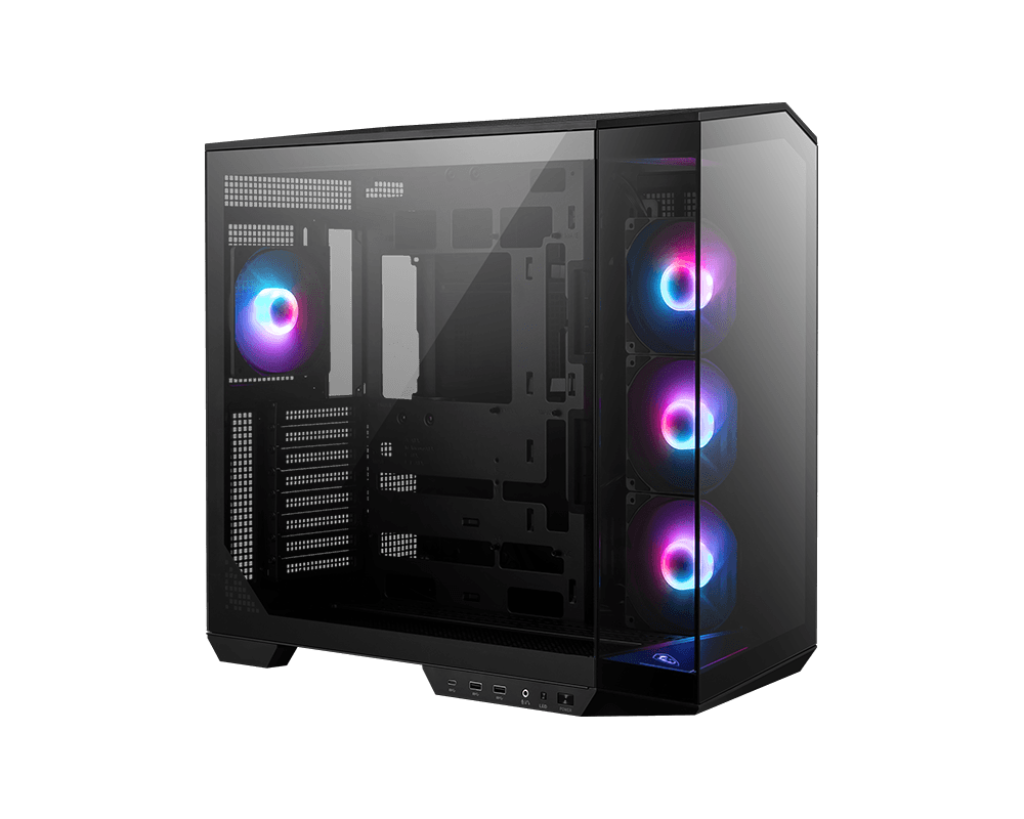

270-degree panoramic tempered glass.

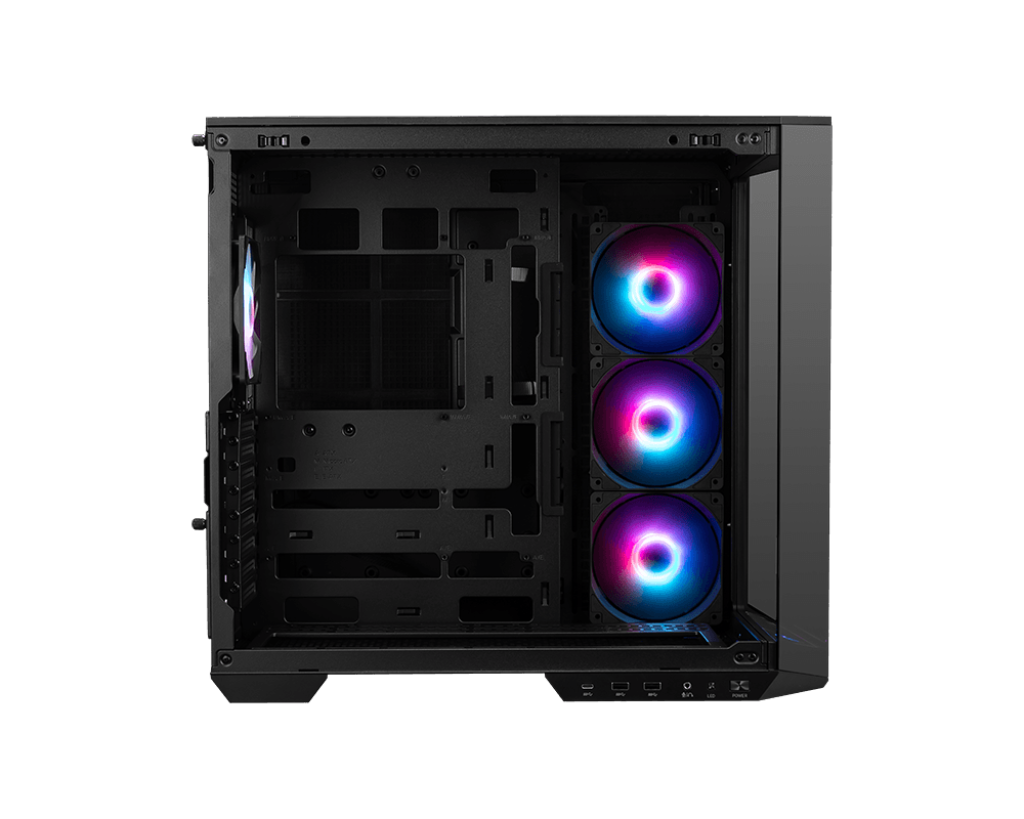

Pre-installed with 3 x 120 mm ARGB Reverse-blade fan at the side and 1 x 120 mm ARGB fan at the rear.
1-to-4 ARGB-Fan control board.
Synergize with a compatible MSI motherboard through bridging with a USB 20Gbps Type-C (20Gbps) port for high speed data transmission.
Removable dust filter at the top, side and bottom being easily removed for cleaning.
UNI front panel cable make your DIY process easier and create more possibilities to your system.

Specifications

Product Name

MAG PANO 100R PZ
Case Form Factor

Mid Tower
MOTHERBOARD FORM FACTOR SUPPORT

Regular: ATX / Micro-ATX / Mini-ITX
Back-connect: ATX / Micro-ATX
I/O Ports

1 x USB 20Gbps Type-C
2 x USB 5Gbps Type-A
1 x Audio-Out / Mic-in
1 x LED Switch Button
1 x Power Button
DRIVE MOUNT SUPPORT

3 x 2.5”
2 x 2.5”/3.5” combo
Expansion Slots

8
Maximum GPU Length

380 mm / 14.96 inches
MAXIMUM CPU COOLER HEIGHT

166 mm / 6.54 inches
POWER SUPPLY SUPPORT

ATX
MAXIMUM PSU LENGTH

200 mm / 7.87 inches
Fan Size Support

Top: 3 x 120 mm / 3 x 140 mm
Front: NA
Rear: 1 x 120 mm
Side: 3 x 120 mm / 2 x 140 mm
Bottom: 3 x 120 mm / 2 x 140 mm / 2 x 160 mm
PRE-INSTALLED FAN SIZE

Side: 3 x 120 mm
Rear: 1 x 120 mm
PRE-INSTALLED FAN TYPE

Side: 3 x ARGB Reverse-blade
Rear: 1 x ARGB
RADIATOR SIZE SUPPORT

Top: 120 / 240 / 360 mm
Front: NA
Rear: 120 mm
Side: 120 / 240 / 360 mm
Bottom: 120 / 240 / 360 mm
DIMENSIONS (DXWXH)

518.7 x 290 x 482 mm / 20.42 x 11.42 x 18.98 inches
CONNECTION

1. 1x USB 3.2 Gen 2x2 Type-C
2. 2x USB 3.2 Gen 1 Type-A
3. Mic In/ Audio Out
4. LED Switch Button
5. Power Button
