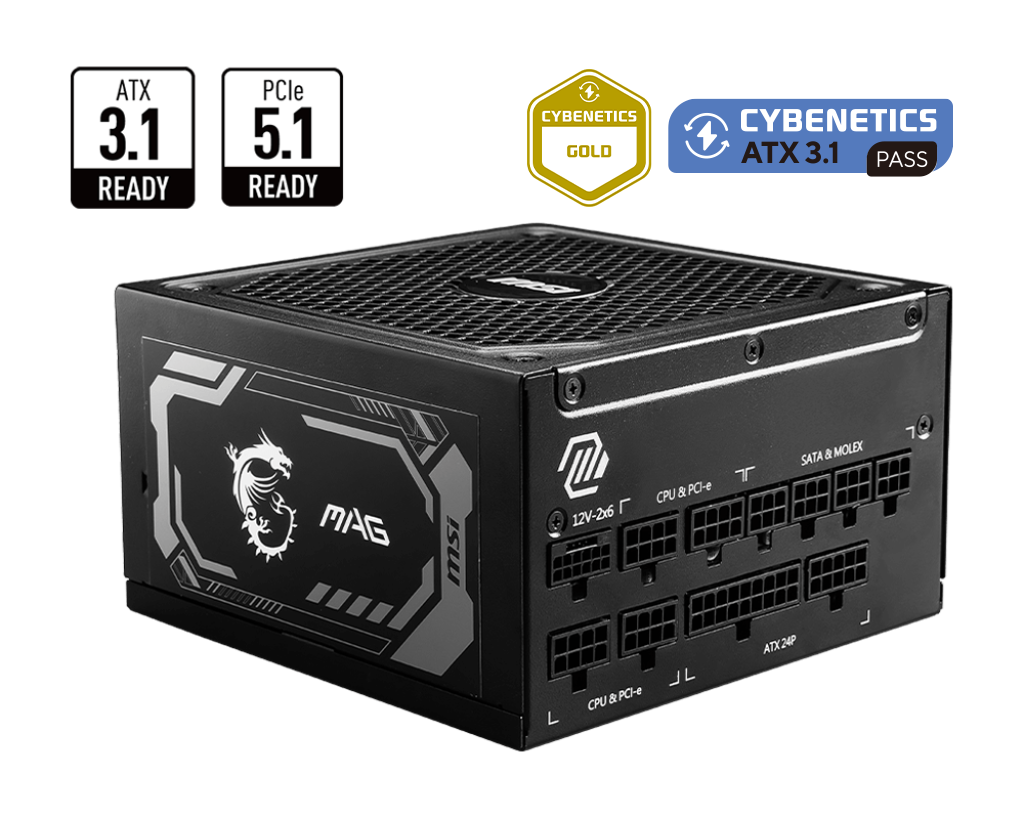

MAG A1250GL PCIE5
- ATX 3.1 ready, native dual-color PCIe CEM 5.1 connector
- Supports NVIDIA® GeForce RTX™ 40 series graphics cards

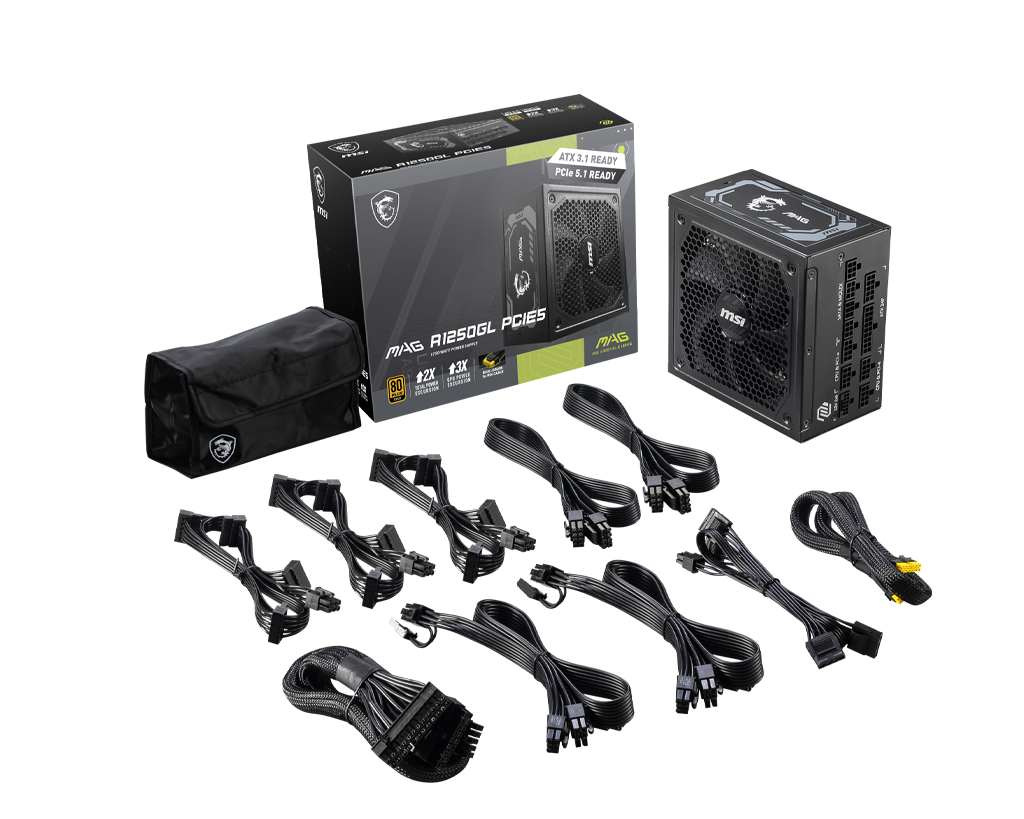

- Fully modular design, flat cables
- 80 PLUS Gold certified for high efficiency
- Active PFC design
- Protection with OVP / OCP / OPP / OTP / SCP / UVP

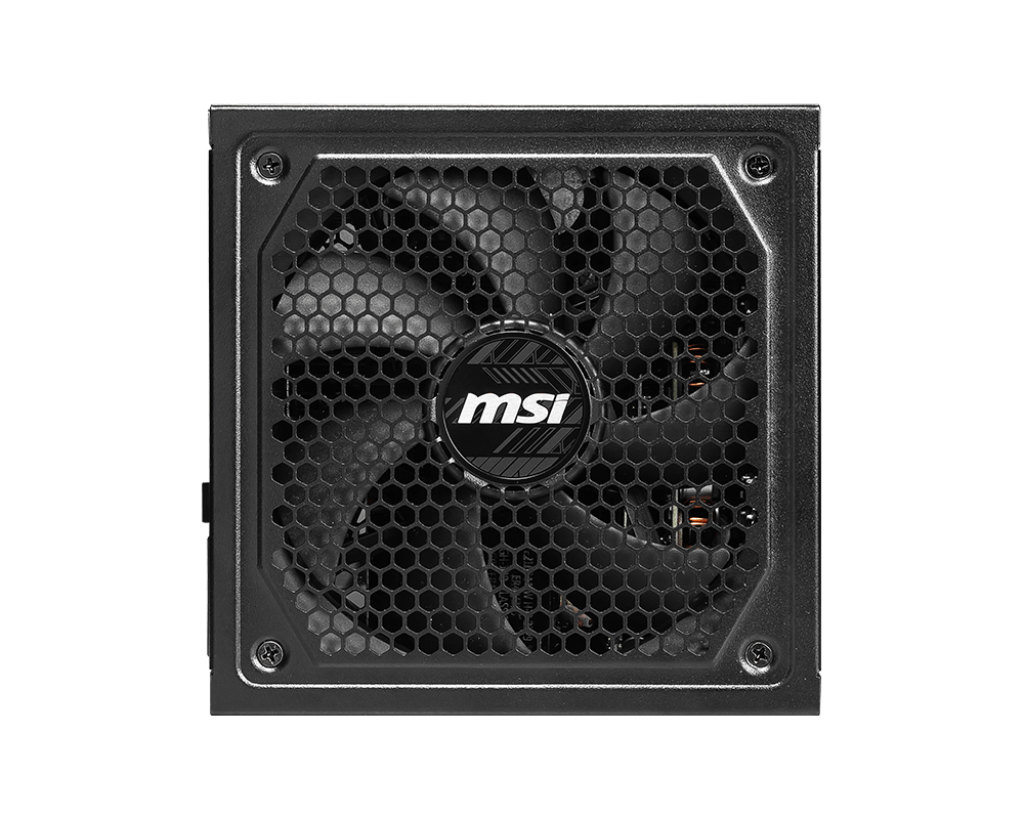

- 135 mm fluid dynamic bearing fan
- LLC full bridge topology with DC-to-DC module design
Specifications
-
EFFICIENCY RATING
80 PLUS Gold (up to 90%)
-
Modular
Yes (fully modular)
-
FAN SIZE
135 mm
-
Fan Bearing
Fluid Dynamic Bearing
-
DIMENSIONS (DXWXH)
150 x 150 x 86 mm
-
PFC TYPE
Active PFC
-
INPUT VOLTAGE RANGE
100-240V~
-
POWER WATT
1250W
-
POWER EXCURSION
2500W (*up to 200% of the PSU's rated power for 100μs)
-
INPUT FREQUENCY RANGE
50-60Hz
-
Protection
OCP / OVP / OPP / OTP / SCP / UVP
-

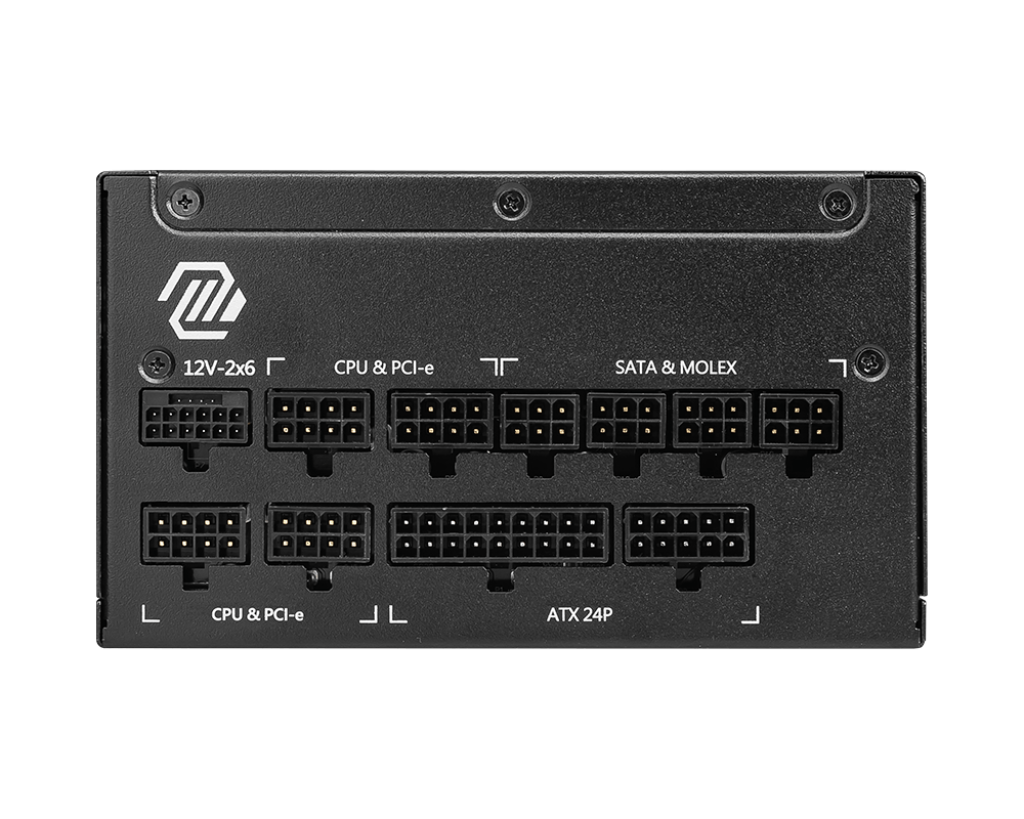

ATX (24 PIN)
1
-
EPS (4+4 PIN)
2
-
PCI-E 5.1 (16 PIN)
1 (600W)
-
PCI-E (6+2 PIN)
4
-
SATA (15 PIN)
12
-
MOLEX (4 PIN)
4
-
FDD (4 PIN)
1
