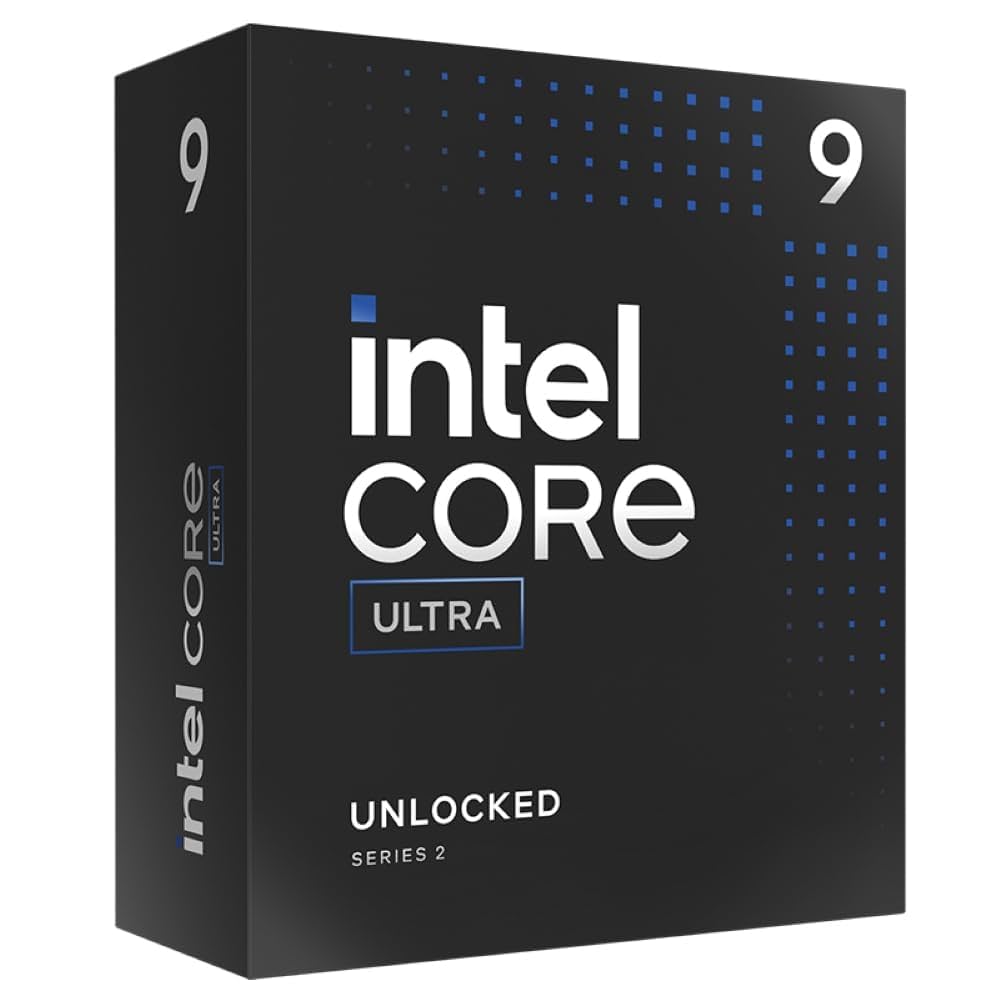

Intel® Core™ Ultra 9 285K Processor

Specifications

• Total Cores

  24

• # of Performance-cores

  8

• # of Efficient-cores

  16

• Total Threads

  24

• Max Turbo Frequency

  5.7 GHz

• Intel Thermal Velocity Boost Frequency

  5.7 GHz

• Intel Turbo Boost Max Technology 3.0 Frequency ‡

  5.6 GHz

• Performance-core Max Turbo Frequency

  5.5 GHz

• Efficient-core Max Turbo Frequency

  4.6 GHz

• Performance-core Base Frequency

  3.7 GHz

• Efficient-core Base Frequency

  3.2 GHz

• Cache

  36 MB Intel® Smart Cache

• Total L2 Cache

  40 MB

• Processor Base Power

  125 W

• Maximum Turbo Power

  250 W

• Intel® Deep Learning Boost (Intel® DL Boost) on CPU

  Yes

• AI Software Frameworks Supported by CPU

  OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN

• CPU Lithography

  TSMC N3B

• Max Memory Size (dependent on memory type)

  256 GB

• Memory Types

  Up to DDR5 6400 MT/s

• Maximum Memory Speed

  6400 MHz

• Max # of Memory Channels

  2

• ECC Memory Supported ‡

  Yes

• GPU Name

  Intel® Graphics

• Graphics Base Frequency

  300 MHz

• Graphics Max Dynamic Frequency

  2 GHz

• GPU Peak TOPS (Int8)

  8

• Graphics Output

  DP2.1 UHBR20, HDM2.1 FRL 12GHz, eDP1.4b

• Xe-cores

  4

• Max Resolution (HDMI)‡

  4K @ 60Hz (HDMI 2.1 TMDS) 8K @ 60Hz (HDMI2.1 FRL)

• Max Resolution (DP)‡

  8K @ 60Hz

• Max Resolution (eDP - Integrated Flat Panel)‡

  4K @ 60Hz

• DirectX* Support

  12

• OpenGL* Support

  4.5

• OpenCL* Support

  3

• Intel® Quick Sync Video

  Yes

• # of Displays Supported ‡

  4

• Device ID

  0x7D67

• Intel Deep Learning Boost (Intel® DL Boost) on GPU

  Yes

• NPU Name‡

  Intel® AI Boost

• NPU Peak TOPS (Int8)

  13

• Sparsity Support

  Yes

• Windows Studio Effects Support

  Yes

• AI Software Frameworks Supported by NPU

  OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN

• Sockets Supported

  FCLGA1851

• Thermal Solution Specification

  PCG 2020A

• Max Operating Temperature

  105 °C
