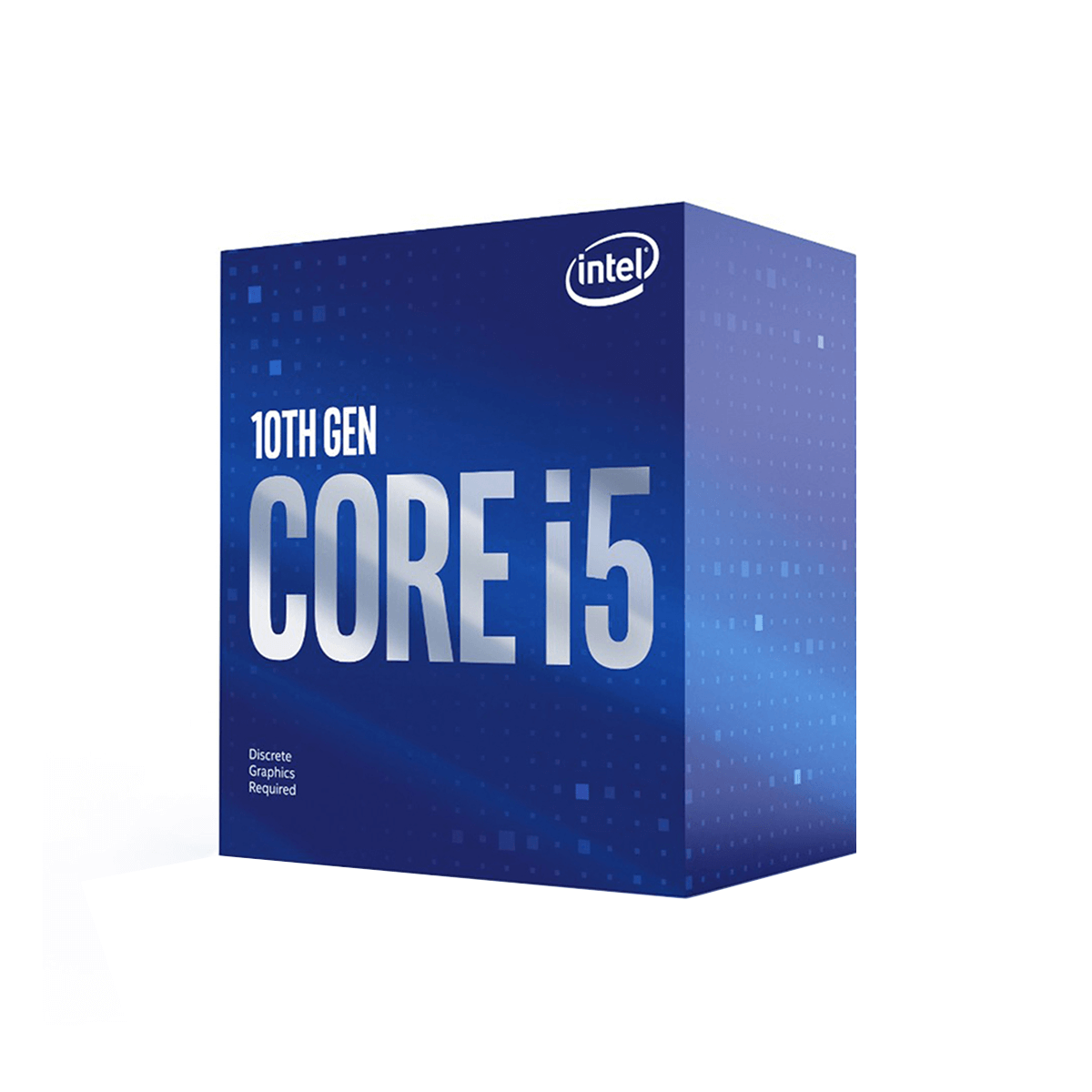

Intel Core™ i5-10400 Processor

Specifications

• Total Cores

  6

• Total Threads

  12

• Max Turbo Frequency

  4.30 GHz

• Intel Turbo Boost Technology 2.0 Frequency‡

  4.30 GHz

• Processor Base Frequency

  2.90 GHz

• Cache

  12 MB Intel® Smart Cache

• Bus Speed

  8 GT/s

• TDP

  65 W

• Max Memory Size (dependent on memory type)

  128 GB

• Memory Types

  DDR4-2666

• Max # of Memory Channels

  2

• Max Memory Bandwidth

  41.6 GB/s

• ECC Memory Supported ‡

  No

• GPU Name

  Intel® UHD Graphics 630

• Graphics Base Frequency

  350 MHz

• Graphics Max Dynamic Frequency

  1.10 GHz

• Graphics Video Max Memory

  64 GB

• 4K Support

  Yes, at 60Hz

• Max Resolution (HDMI)‡

  4096 x 2160@30Hz

• Max Resolution (DP)‡

  4096 x 2304@60Hz

• Max Resolution (eDP - Integrated Flat Panel)‡

  4096 x 2304@60Hz

• DirectX* Support

  12

• OpenGL* Support

  4.5

• Intel® Quick Sync Video

  Yes

• Intel® InTru™ 3D Technology

  Yes

• Intel® Clear Video HD Technology

  Yes

• Intel® Clear Video HD Technology

  Yes

• # of Displays Supported ‡

  3

• Device ID

  0x9BC8 / 0x9BC5

• Sockets Supported

  FCLGA1200

• Max CPU Configuration

  1

• Thermal Solution Specification

  PCG 2015C

• TJUNCTION

  100°C

• Package Size

  37.5mm x 37.5mm
