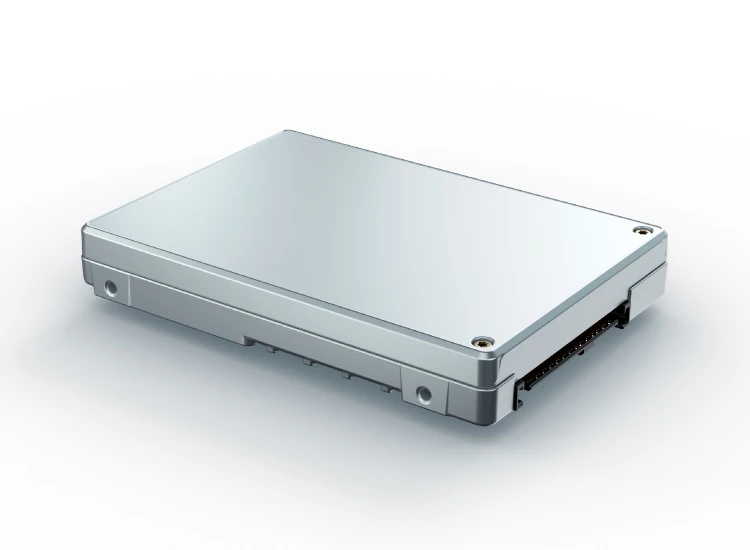

D7-P5520 U.2 15mm

Specifications

• Capacity

  1.92 TB

  3.84 TB

  7.68 TB

  15.36 TB




• Form Factor

  U.2 15mm

• Interface

  PCIe 4.0 x4, NVMe

• Weight

  165g +/- 5g

• Lithography Type

  144L TLC 3D NAND

• Use Conditions

  Server/Enterprise

• Sequential Bandwidth - 100% Read (up to)

  5300 MB/s

  6700 MB/s

  7100 MB/s

  7100 MB/s




• Sequential Bandwidth - 100% Write (up to)

  1900 MB/s

  3600 MB/s

  4200 MB/s

  3700 MB/s




• Random Read (100% Span)

  700000 IOPS (4K Blocks)

  1000000 IOPS (4K Blocks)

  1100000 IOPS (4K Blocks)

  1000000 IOPS (4K Blocks)




• Random Write (100% Span)

  114000 IOPS (4K Blocks)

  200000 IOPS (4K Blocks)

  220000 IOPS (4K Blocks)

  200000 IOPS (4K Blocks)




• Power - Active

  13W

  15W

  18W

  20W




• Power - Idle

  5W

• Latency - Random Read (typ.)

  75μs

  75μs

  75μs

  75μs




• Latency - Random Write (typ.)

  15μs

  15μs

  15μs

  20μs




• Latency - Sequential Read (typ.)

  10μs

  10μs

  10μs

  10μs




• Latency - Sequential Write (typ.)

  13μs

  13μs

  13μs

  13μs




• Warranty

  5 yrs

• Endurance Rating (Lifetime Writes)

  3.5 PBW

  7.0 PBW

  14.0 PBW

  28.0 PBW




• Mean Time Between Failure (MTBF)

  2 million hours

• Uncorrectable Bit Error Rate (UBER)

  1 sector per 10^17 bits read

• Vibration - Operating

  2.17 GRMS (5 - 700 Hz) Max

• Vibration - Non-Operating

  3.13 GRMS (5 - 800 Hz) Max

• Shock (Operating and Non-Operating)

  1,000 G (Max) at 0.5 msec

• Operating Temperature Range

  0°C to 70°C
