Core P5 TG V2 Black Edition

ATX Open Frame panoramic viewing gaming computer case with Tt LCS Certified.

Thermaltake Core P5 Tempered Glass V2 Black Edition ATX Wall-Mount Chassis

Take presentation to the next level with the Core P5 Tempered Glass V2 Black Edition open frame chassis by Thermaltake. The new Core P5 TG V2 Black Edition comes with 5mm tempered glass panel plus stainless-steel panel secure mechanism, four USB 3.0 data transfer ports, a motherboard tray and fully modular design that allows flexibility for 3-way placement layouts (Wall mount, Horizontal and Vertical), dual GPU layout locations: Horizontal and Vertical and placement locations for liquid cooling components. Uncover greatness with the Core P5 TG V2 Black’s panoramic viewing angle with its full tempered glass window to protect and present.

TT Premium

To continue achieving the corporate mission of delivering the perfect user experience, Thermaltake developed “TT Premium” with the essence of combining supreme quality products with a new logo design. TT Premium is far more than just a guarantee of quality. Behind the name, it represents the passion in DIY, Modding and Thermaltake’s desire to be the most innovative brand in the PC hardware market. To satisfy the demand of the high-end PC users, TT Premium follows its core values of Excellent Quality, Unique Design, Diverse Combinations and Boundless Creativity to provide a high-performance PC product for every enthusiast.

Tt LCS Certified

Tt LCS Certified is a Thermaltake exclusive certification applied only to products that pass the design and hardcore enthusiast standards that a true LCS chassis should hold to. The Tt LCS certification was created so that we at Thermaltake can indicate to all power users which chassis have been tested to be best compatible with extreme liquid cooling configurations, ensuring you get the best performance from the best features and fitment.

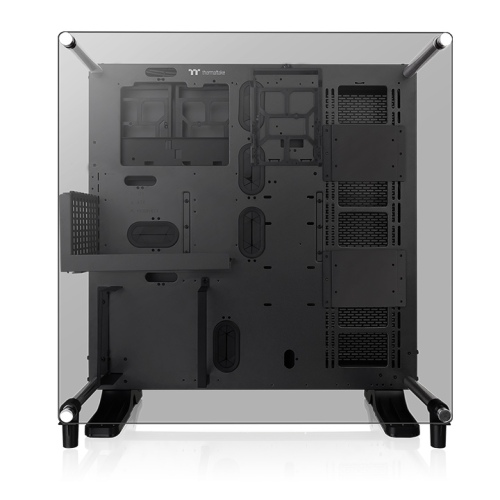

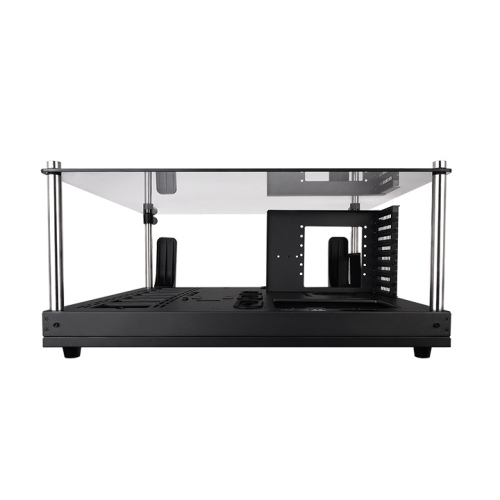

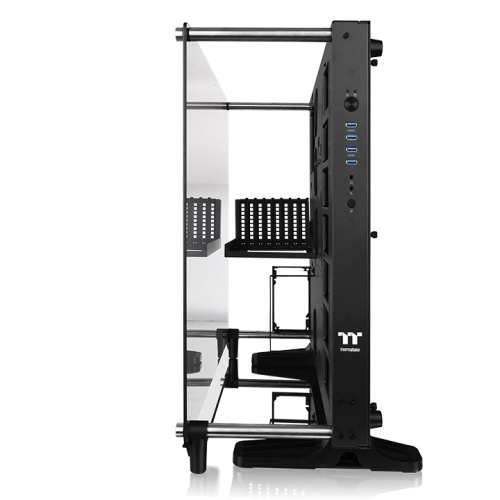

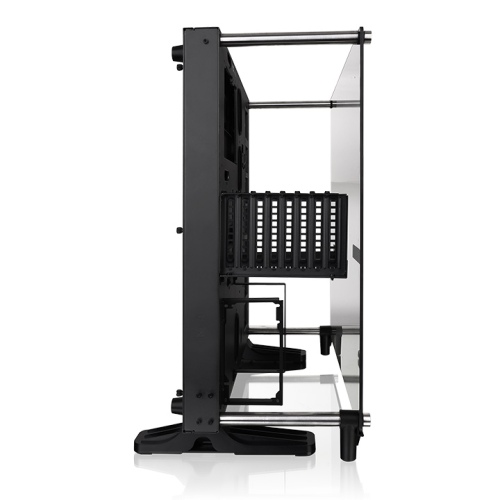

Product Image

Specifications

  • SERIES

    Core

  • MODEL NAME

    Core P5 TG V2 Black

  • CASE TYPE

    Mid Tower

  • DIMENSION (H X W X D)

    608 x 333 x 570 mm
    (23.9 x 13.1 x 22.4 inch)

  • NET WEIGHT

    16.3 kg

  • PANEL

    Tempered Glass x 1 (5mm thickness)

  • COLOR

    Black

  • MATERIAL

    SPCC

  • DRIVE BAYS -ACCESSIBLE -HIDDEN

    1 x 3.5’’ or 2.5’’ (HDD tray); 2 x 2.5” or 3.5”(HDD Bracket)
    3 x 3.5’’ or 2.5’’ (Behind the M/B tray)

  • Expansion Slots

    8

  • MOTHERBOARDS

    6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX)

  • I/O Ports

    USB 3.0 x 4, HD Audio x 1

  • PSU

    Standard PS2 PSU (optional)

  • FAN SUPPORT

    Left Side:
    4 x 120mm
    3 x 140mm

  • RADIATOR SUPPORT

    Left Side:
    1 x 480mm
    1 x 420mm

  • CLEARANCE

    CPU cooler height limitation:
    180mm
    VGA length limitation:
    280mm (With Reservoir)
    320mm (Without Reservoir)
    PSU length limitation:
    200mm
