Core P1 TG Mini ITX

Thermaltake Core P1 Tempered Glass Mini ITX Open Frame panoramic viewing gaming computer case with LCS Certified.

Thermaltake Core P1 TG Mini ITX Wall-Mount Chassis

Thermaltake expands its Core P Series by adding the Core P1 TG Mini ITX wall-mount, tempered-glass chassis to the lineup. The Core P1 TG Mini ITX boasts open frame panel design with a 5mm thick tempered glass panel to protect the components and allows users to show off the hardware inside. It also supports the latest PC hardware, AIO and DIY liquid cooling solutions, and has the flexibility of building horizontal/vertical system by its multiple placement design. The Core P1 TG Mini ITX makes a stunning display for high-end enthusiast builds without sacrificing performance and taking up too much desk space.
*A standard riser cable is included.

Tt LCS Certified

Tt LCS Certified is a Thermaltake exclusive certification applied to only products that pass the design and hardcore enthusiasts standards that a true LCS chassis should be held to. The Tt LCS certification was created so that we at Thermaltake can designate to all power users which chassis have been tested to be best compatible with extreme liquid cooling configurations to ensure you get the best performance from the best features and fitment.

5 mm Thick Tempered Glass Window Design

The 5 mm thick tempered glass window guarantees the durability of the window and the most exciting panoramic viewing. With the enlarged window design, users get to access the ultimate visual presentation and admire all components of the liquid-cooling system.

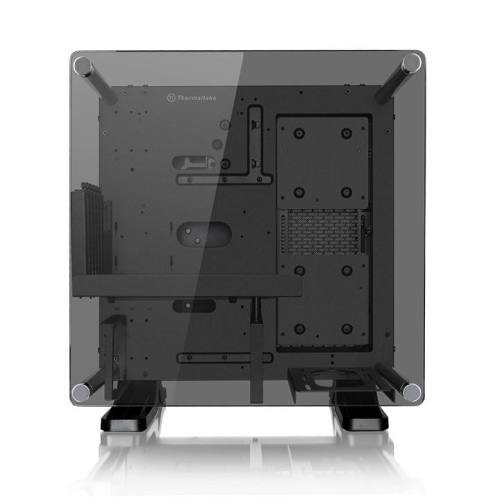

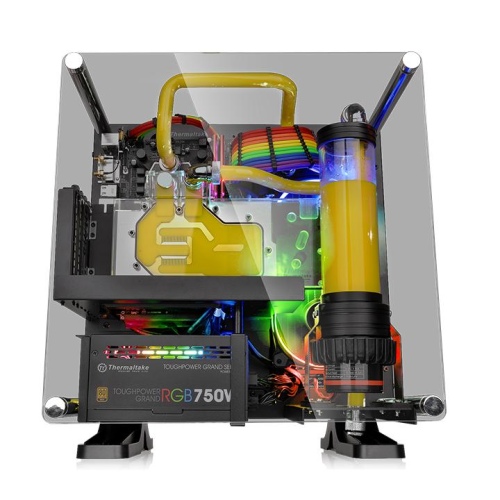

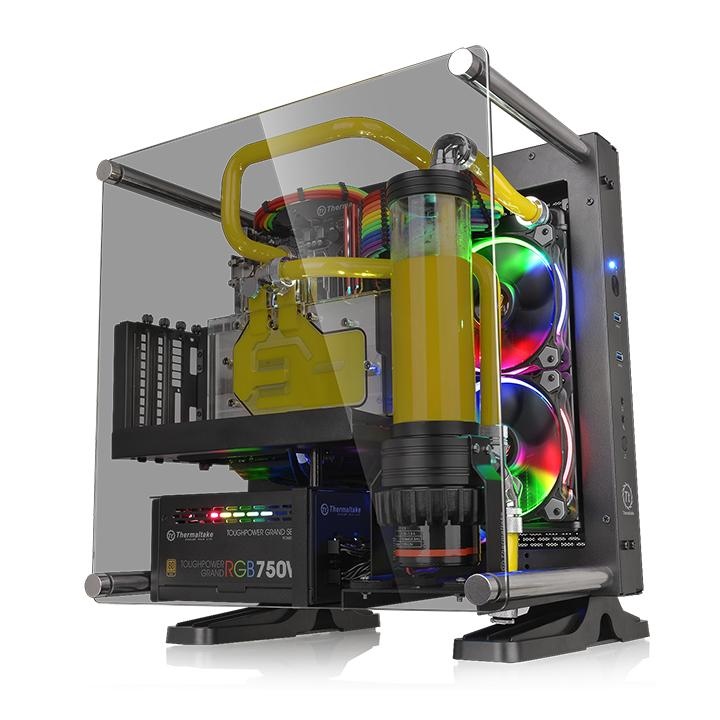

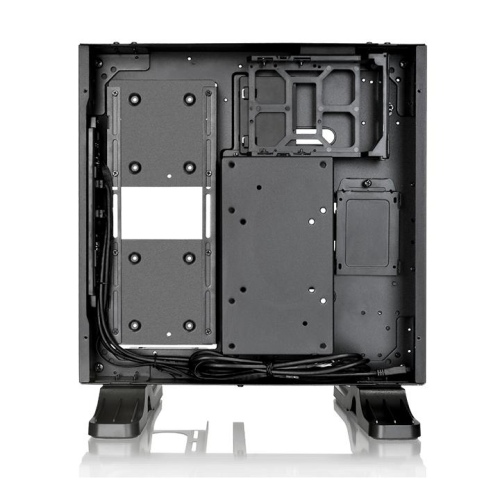

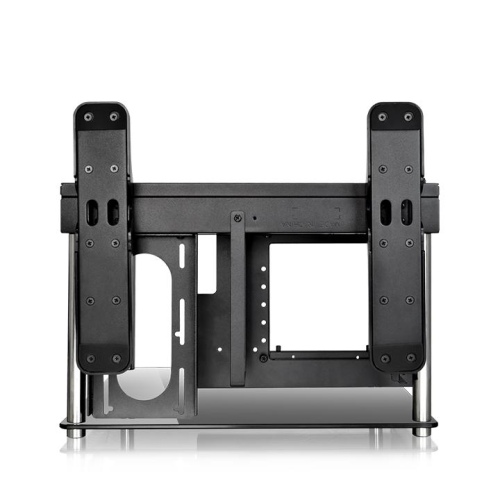

Product Image

Specifications

  • SERIES

    Core

  • CASE TYPE

    Mini Case

  • DIMENSION (H X W X D)

    422 x 332 x 380 mm
    (16.6 x 13.1 x 15 inch)

  • NET WEIGHT

    9.5 kg / 20.9 lb

  • PANEL

    Tempered Glass (5mm thickness)

  • COLOR

    Black

  • MATERIAL

    SPCC

  • DRIVE BAYS -ACCESSIBLE -HIDDEN

    -Accessible
    2 x 2.5" (Outside the chassis)

    -Hidden
    1 x 3.5’’ or 2.5’’ (Inside the chassis)
    1 x 2.5’’ (Inside the chassis)

  • Expansion Slots

    5

  • MOTHERBOARDS

    6.7” x 6.7” (Mini ITX)

  • I/O PORT

    USB 3.0 x 2 , HD Audio x 1

  • PSU

    Standard PS2 PSU (optional)

  • FAN SUPPORT

    Left Side:
    2 x 120mm

  • RADIATOR SUPPORT

    Left Side:
    1 x 240mm

  • CLEARANCE

    CPU cooler height limitation: 170mm
    VGA length limitation: 380mm (Radiator thickness under 30mm without fan)
    PSU length limitation: 180mm
    Radiator Width Limitation: 122mm
