CASING MSI MAG PANO 100L PZ BLACK/WHITE
- Compatible with ATX and Micro-ATX Back-connect motherboard.
- Supports 360 mm radiator on the top, side and bottom
- 270-degree panoramic tempered glass.
- Supports up to 10 x 120 mm system fans.
- Synergize with a compatible MSI motherboard through bridging with a USB 20Gbps Type-C (20Gbps) port for high speed data transmission.
- Removable dust filter at the top, side and bottom being easily removed for cleaning.
- UNI front panel cable make your DIY process easier and create more possibilities to your system.
Specifications
-
PRODUCT NAME
MAG PANO 100L PZ
-
Case Form Factor
Mid Tower
-
MOTHERBOARD FORM FACTOR SUPPORT
Regular: ATX / Micro-ATX / Mini-ITX
Back-connect: ATX / Micro-ATX -

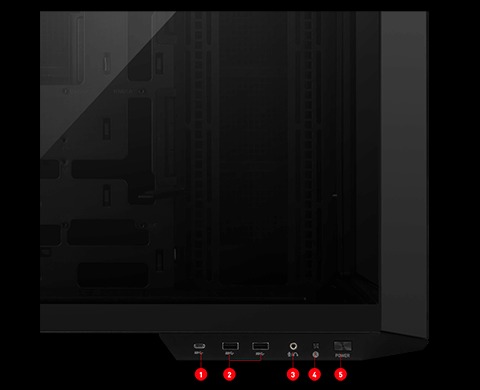

I/O Ports
1 x USB 20Gbps Type-C
2 x USB 5Gbps Type-A
1 x Audio-Out / Mic-in
1 x Reset Button
1 x Power Button -
DRIVE MOUNT SUPPORT
3 x 2.5”
2 x 2.5”/3.5” combo -
EXPANSION SLOTS
8
-
Maximum GPU Length
380 mm / 14.96 inches
-
Maximum CPU Cooler Height
166 mm / 6.54 inches
-
POWER SUPPLY SUPPORT
ATX
-
Maximum PSU Length
200 mm / 7.87 inches
-
Fan Size Support
Top: 3 x 120 mm / 3 x 140 mm
Front: NA
Rear: 1 x 120 mm
Side: 3 x 120 mm / 2 x 140 mm
Bottom: 3 x 120 mm / 2 x 140 mm / 2 x 160 mm -
RADIATOR SIZE SUPPORT
Top: 120 / 240 / 360 mm
Front: NA
Rear: 120 mm
Side: 120 / 240 / 360 mm
Bottom: 120 / 240 / 360 mm -
DIMENSIONS (DXWXH)
518.7 x 290 x 482 mm / 20.42 x 11.42 x 18.98 inches
-
NET WEIGHT
11.30 kg / 24.91 lbs
-
GROSS WEIGHT
14.10 kg / 31.09 lbs
-
CONNECTIONS
- 1x USB 3.2 Gen 2x2 Type-C
- 2x USB 3.2 Gen 1 Type-A
- Mic In/ Audio Out
- Reset Button
- Power Button
