BATTLE-AX B760M-F V20A

Feature Highlights:

Provides 4 USB 3.2 Gen 1 Type-A high-speed interfaces
Provides 2 USB 2.0 interfaces
Provides 1 PCIe 4.0 x4 M.2 SSD slot
Provides 2 5V 3-pin ARGB pins, supports iGame Center lighting control software
Provides HDMI+VGA display interface
Supports iGame Center lighting control software, can synchronously adjust the lighting effects of radiator, cooling fan and memory
Six major protection technologies, more stable product operation
200 process strict testing, quality guaranteed
PCB atomization process fully upgraded

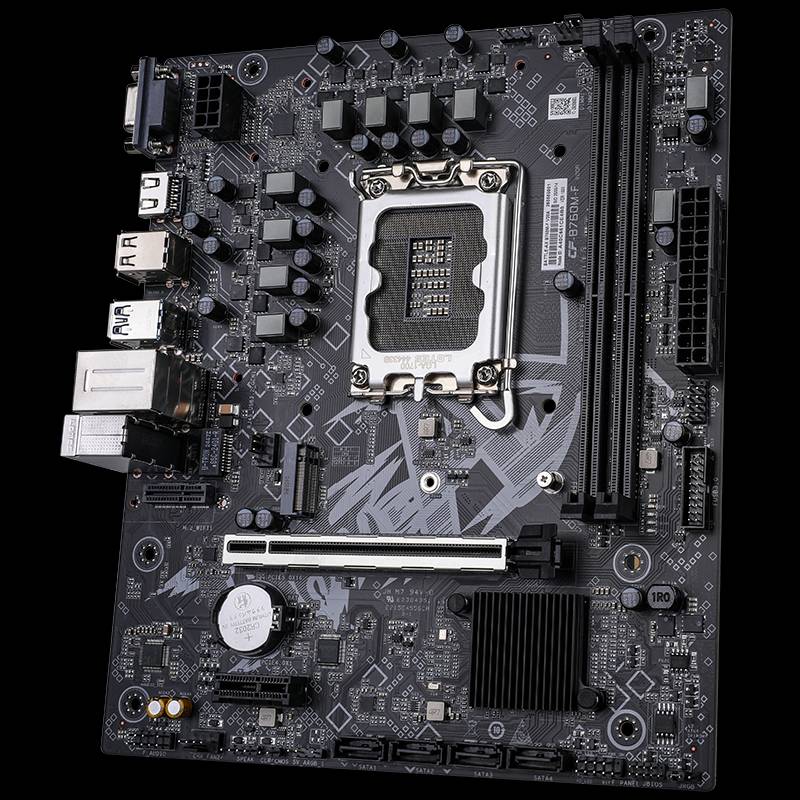

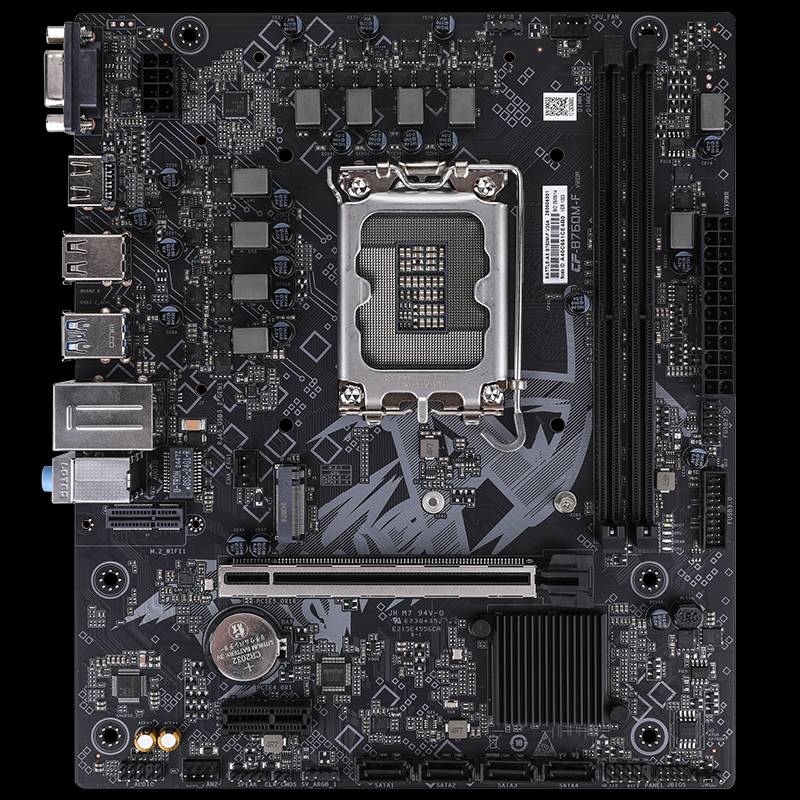

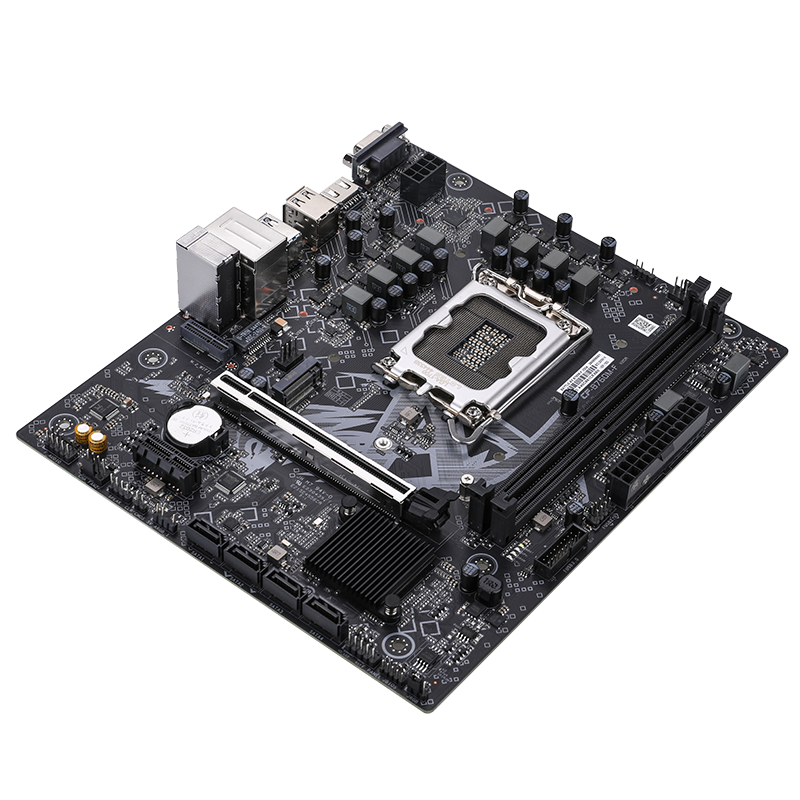

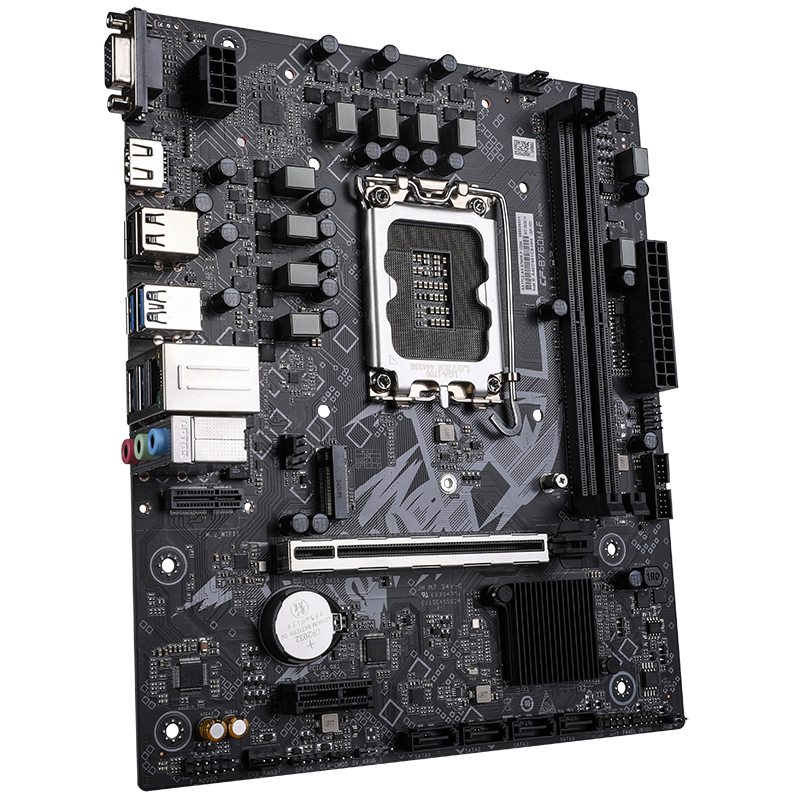

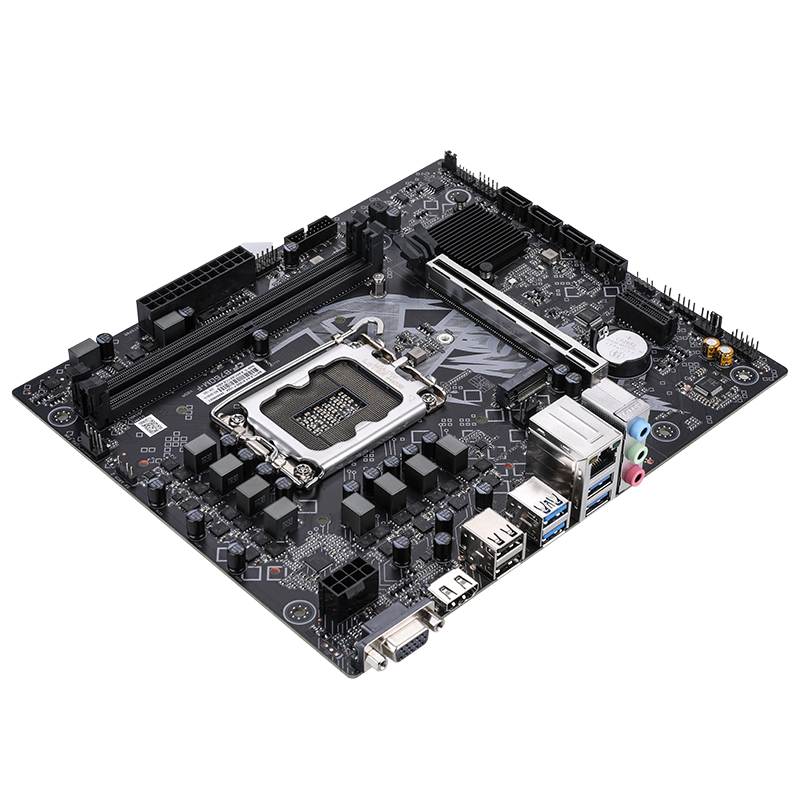

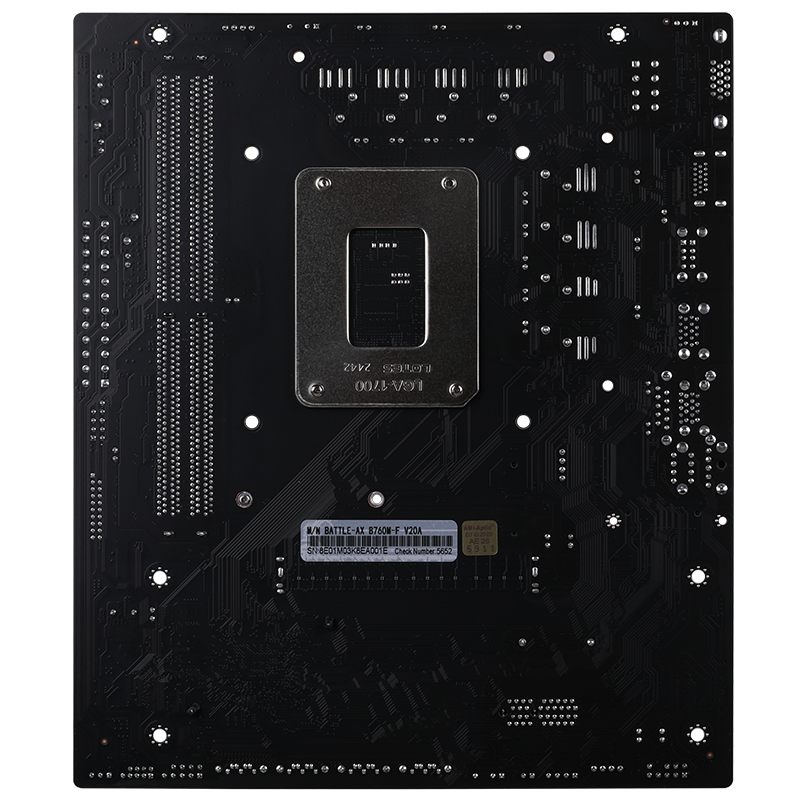

Product Image

Specifications

  • Model

    BATTLE-AX B760M-F V20A

  • Product Series

    BATTLE-AX series

  • Chipset

    Intel B760

  • Processor

    Support the 14th/13th and 12th generation Intel adapting to the LGA 1700 slot of the motherboard ® Core TM, Pentium ® And Cylon ® processor
    (*Please visit the Colorful official website www.colorful.cn for the latest processor support list)

  • Memory

    2 DDR4 memory slots, supporting up to 64 GB memory (single slot supports up to 32 GB)
    - Supports DDR4-4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3200/3000/2933/2800/2666/2400/2133MHz memory
    - Supports Intel® Extreme Memory Profile (XMP) memory technology
    - Supports dual-channel memory technology
    (*Please visit Colorful's official website www.colorful.cn for the latest memory compatibility list)

  • SATA Ports

    1 M.2 slot and 4 SATA 6Gb/s hard disk interfaces, supports creating RAID 0, RAID 1, RAID 5, RAID 10 disk arrays with SATA hard disk devices
    - M.2_1 slot: supports 2242/2280 specification M.2 SSD (PCIe 4.0 x4, CPU channel)

  • Board I/O

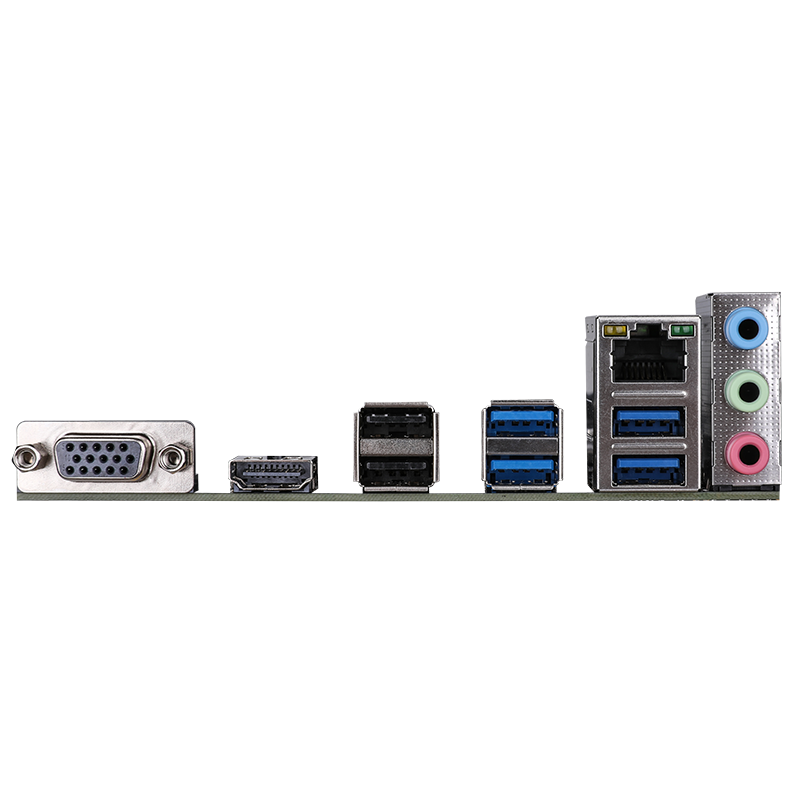

    Rear I/O :
    -2×USB 2.0 interfaces
    -4×USB 3.2 Gen 1 Type-A interfaces
    -1×HDMI 2.0 interface, supporting up to 4K 60Hz resolution
    -1×VGA interface
    -1×Gigabit network interface
    -3×Audio interfaces (audio input/audio output/microphone)
    On board:
    -1×CPU fan pin
    -2×System fan pins
    -1×USB 2.0 pin can be expanded to 2 USB 2.0 Type-A interfaces
    -1×USB 3.2 Gen 1 pin can be expanded to 2 USB 3.2 Gen 1 Type-A interfaces
    -2×5V 3-pin ARGB pins
    -1×Front audio pin
    -1×Front panel pin
    -1×Speaker pin
    -1×Clear CMOS jumper
    -1×BIOS burner pin
    -1×Lighting control jumper

  • Expansion Slots

    1 PCIe 5.0 x16 slot
    1 PCIe 4.0 x1 slot

  • BIOS

    128M UEFI, support multiple languages

  • Power Management

    Support S3, S4, network S5 wake-up, support scheduled startup, call startup

  • Hardware Monitor

    CPU fan speed controllable, system fan speed controllable, CPU temperature monitoring, System temperature monitoring, and each group voltage monitoring

  • LAN

    RTL8111H/RTL8111M Gigabit LAN

  • Audio

    Realtek ALC897 high-fidelity decoding chip, supports 5.1 channels

  • Configuration

    M-ATX
    225mm x 190mm
