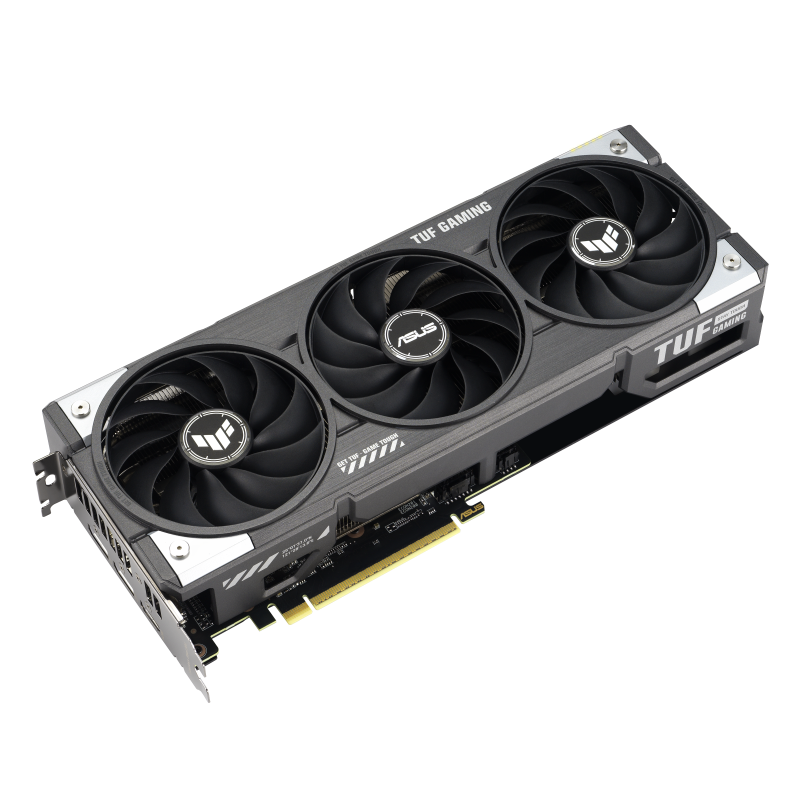

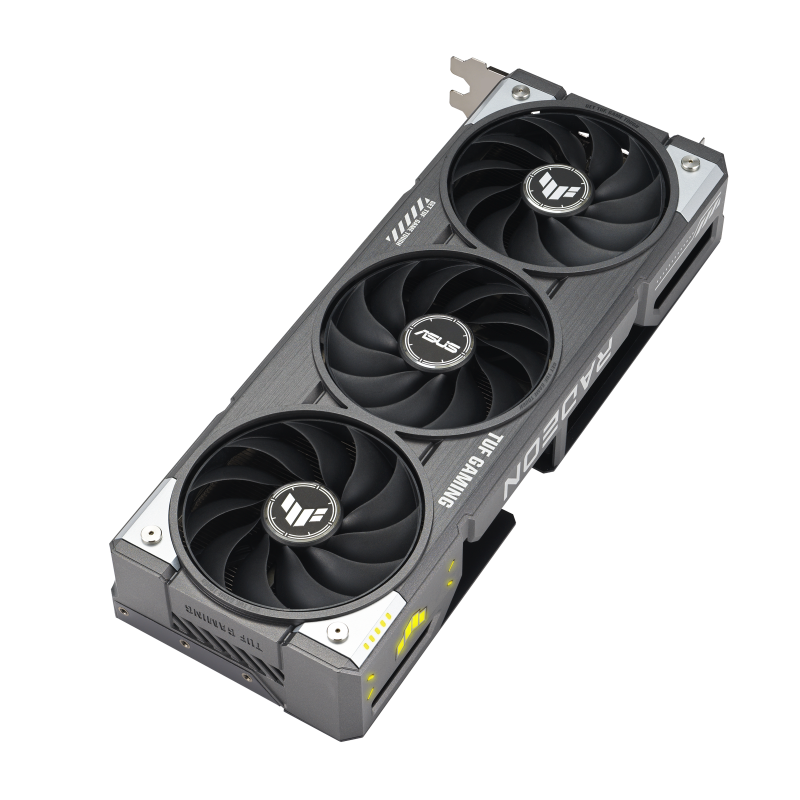

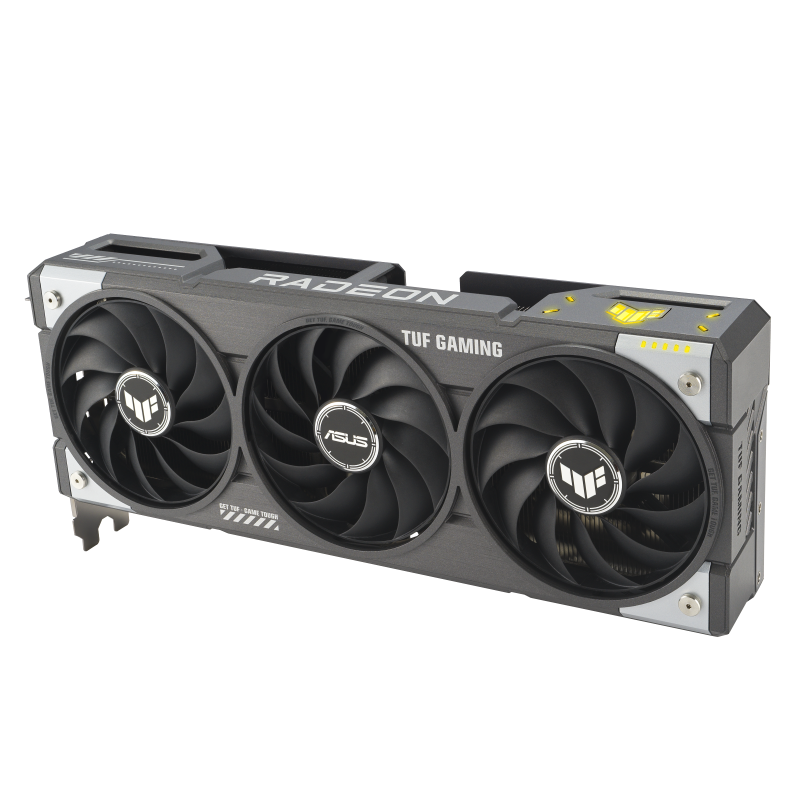

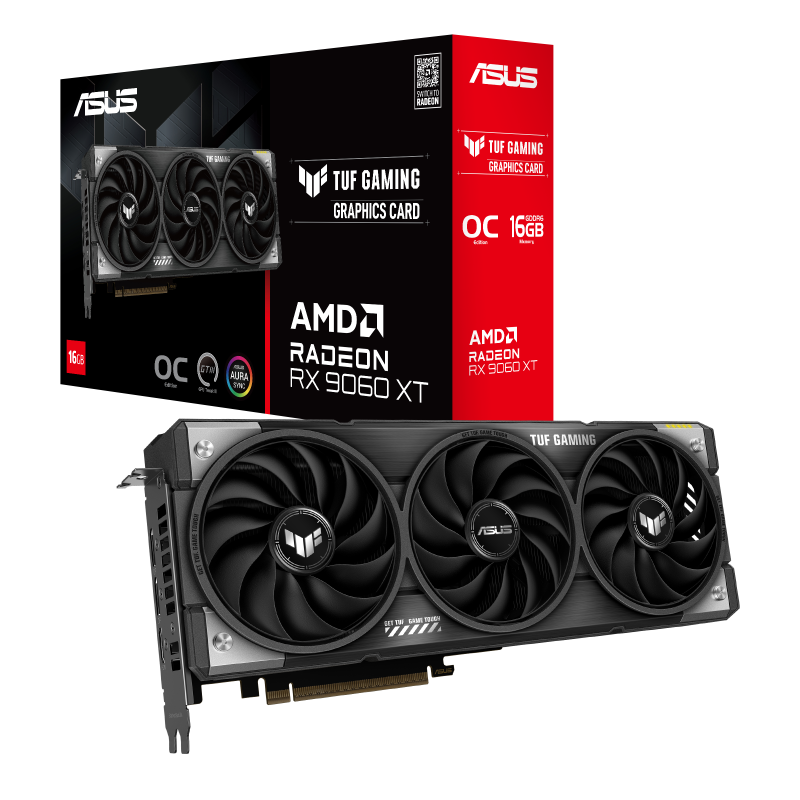

ASUS TUF Gaming Radeon RX 9060 XT 16GB GDDR6 OC Edition

Specifications

• Bus Standard

  PCI Express 5.0

• OpenGL

  OpenGL®4.6

• Video Memory

  16GB GDDR6

• Engine Clock

  TBD

• Stream Processors

  2048

• Memory Speed

  20 Gbps

• Memory Interface

  128-bit

• Maximum Resolution

  Digital Max Resolution 7680 x 4320

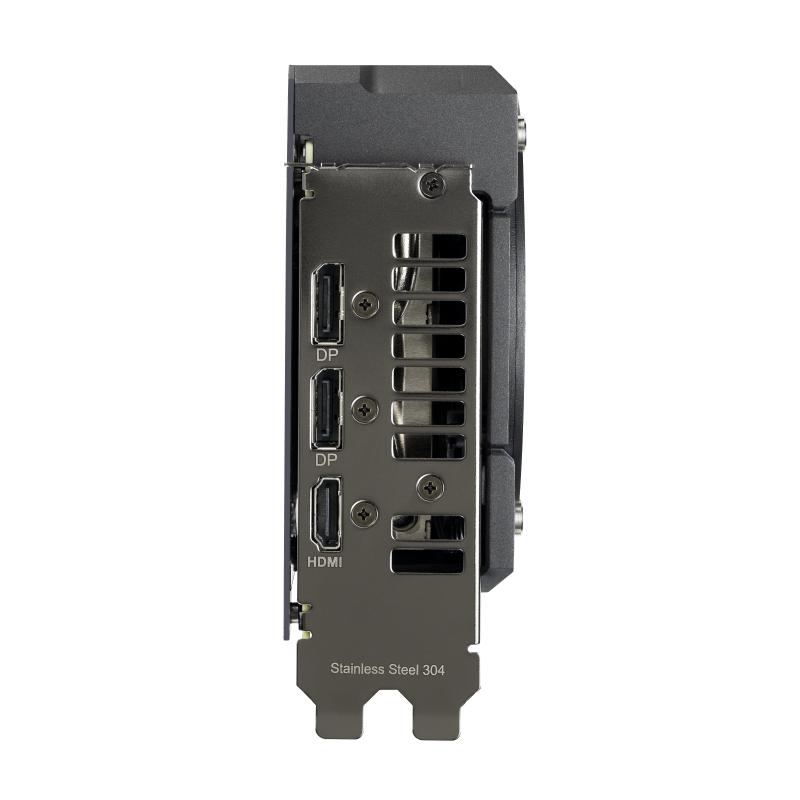

• Interface

  Yes x 1 (Native HDMI 2.1b)
  Yes x 2 (Native DisplayPort 2.1a)
  HDCP Support Yes (2.3)

• Maximum Display Support

  3

• NVlink/ Crossfire Support

  No

• Accessories

  1 x TUF certificate of Reliability
  1 x TUF Velcro Hook & Loop
  1 x TUF Fridge Magnet
  1 x Thank you card
  1 x Speedsetup Manual

• Software

  ASUS GPU Tweak III & Drivers: please download all software from the support site.

• Dimensions

  304 x 126 x 50mm

• Recommended PSU

  550W

• Power Connectors

  1 x 8-pin

• Slot

  2.5 Slot

• AURA SYNC

  RGB

• Note

  * Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html
  * All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by third party to ASUS based on false advertising or any other issues caused from using false specifications of ASUS products.
  * ‘Game Clock’ is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
  * ‘Boost Clock’ is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.
