ASUS Prime Radeon™ RX 9060 XT 8GB GDDR6 OC Edition
Overview
Specifications

ASUS Prime Radeon™ RX 9060 XT 8GB GDDR6 OC Edition

Primed for Power Experience Primal performance with the Prime Radeon™ RX 9060 XT graphics card featuring a compact 2.5-slot design for expansive compatibility, enhanced by a triple-fan setup for supreme cooling.

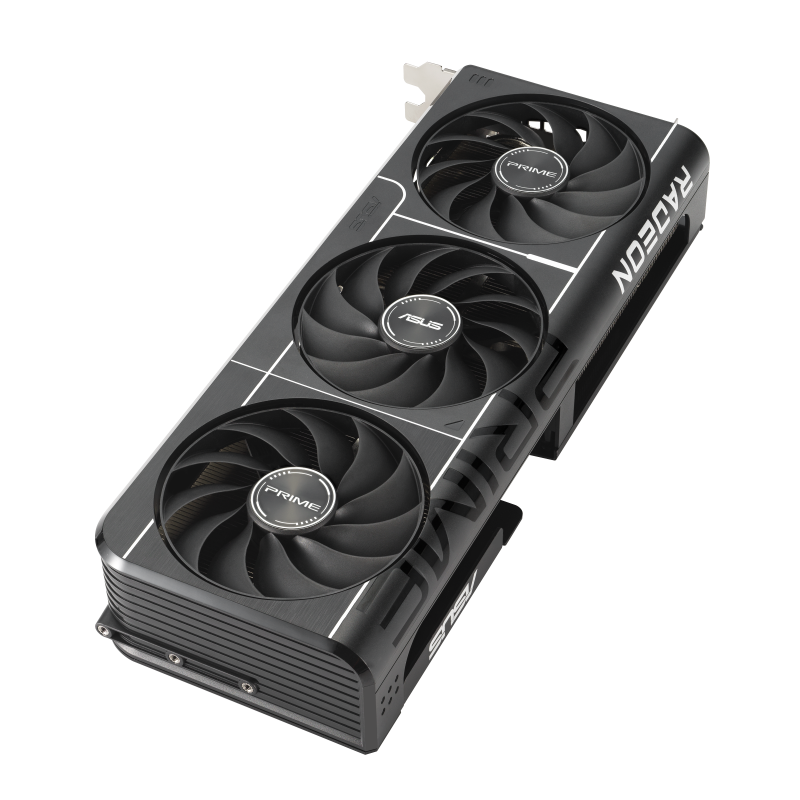

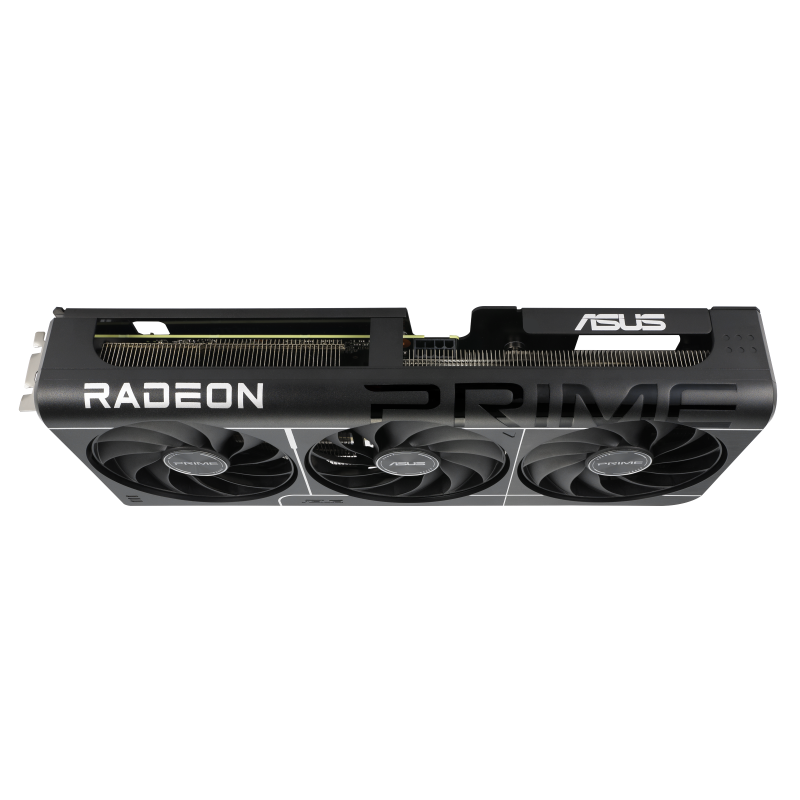

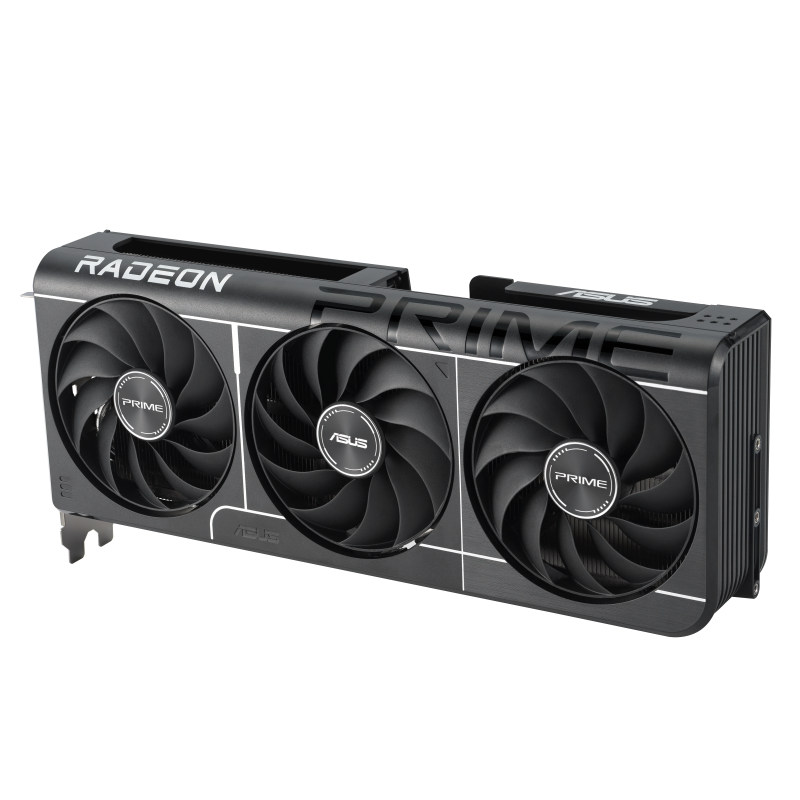

Product Image

Specifications

  • Bus Standard

    PCI Express 5.0

  • OpenGL

    OpenGL®4.6

  • Video Memory

    8GB GDDR6

  • Engine Clock

    TBD

  • Stream Processors

    2048

  • Memory Speed Grade

    20Gbps

  • Memory Interface

    128-bit

  • Maximum Resolution

    Digital Max Resolution 7680 x 4320

  • Interface

    Yes x 1 (Native HDMI 2.1b)
    Yes x 2 (Native DisplayPort 2.1a)
    HDCP Support Yes (2.3)

  • Maximum Display Support

    3

  • NVlink/ Crossfire Support

    No

  • Accessories

    1 x Thank you card
    1 x Speedsetup Manual

  • Software

    ASUS GPU Tweak III & Drivers: please download all software from the support site.

  • Dimensions

    304 x 126 x 50mm

  • Recommended PSU

    550W

  • Power Connectors

    1 x 8-pin

  • Slot

    2.5 Slot

  • Note

    * Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html
    * All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by third party to ASUS based on false advertising or any other issues caused from using false specifications of ASUS products.
    * ‘Game Clock’ is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
    * ‘Boost Clock’ is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.
