ASUS NUC Extreme 13RNGI7

NUC 13 Extreme pairs off-the-charts performance and never-before-seen features with an updated thermal design.

  • NUC 13 Extreme supports a triple-slot 12” graphics card, up to 64GB of dual-channel DDR5 memory supporting speeds of 4800+ MHz1 2 3, and Intel® Killer™ Wi-Fi 6E.

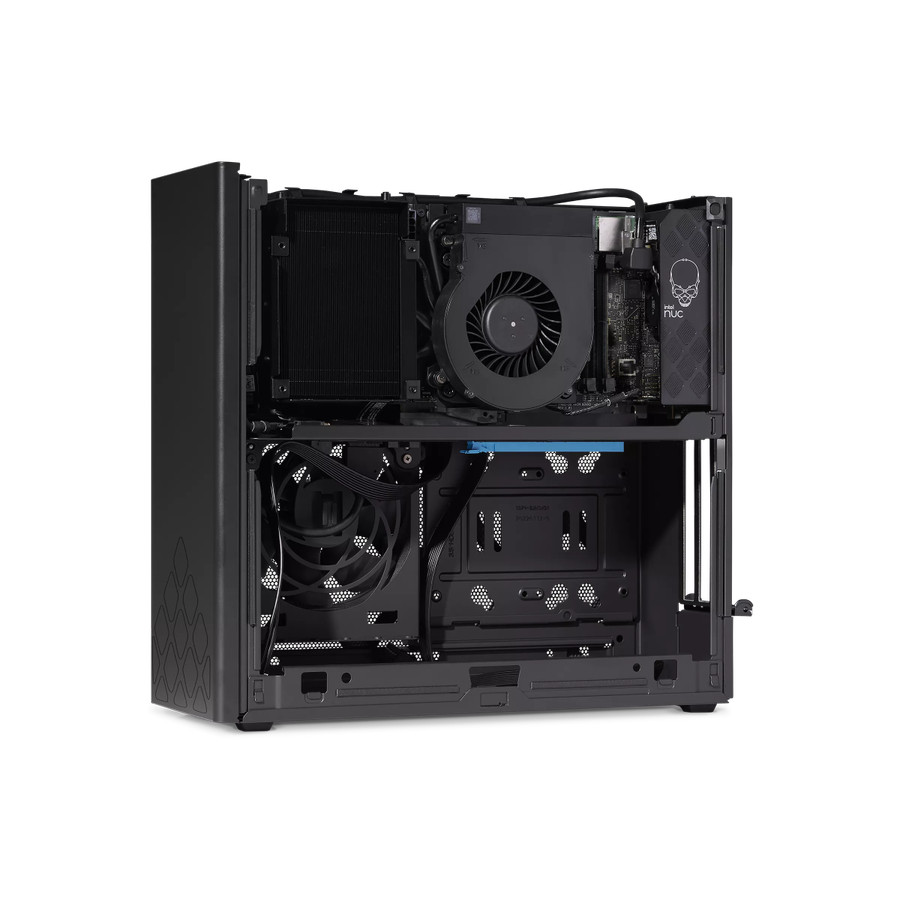

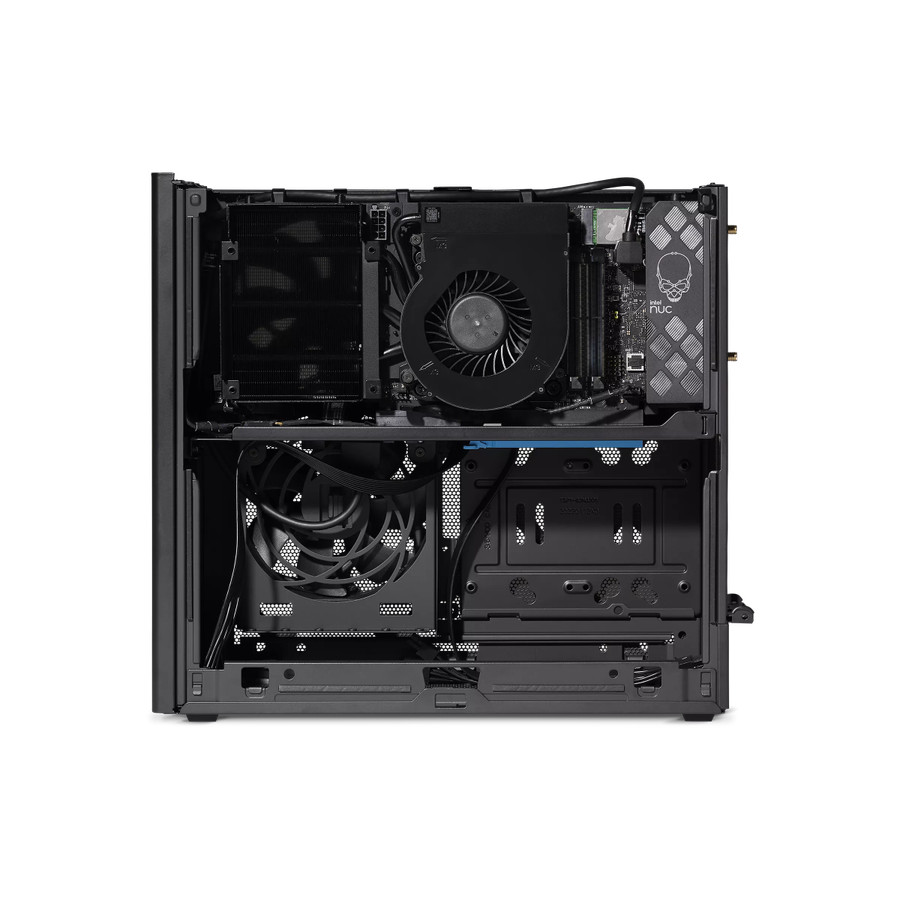

  • With a new, modern design, airflow is optimized to minimize noise and throttling for hours of intense gameplay.
  • Includes an 80+ Gold 750W 12VO power supply, AQC113 10GbE and i226-V 2.5GbE Ethernet ports, two Thunderbolt™ 4 ports, eight USB 3.2 Type-A ports, and a front USB 3.2 Gen2x2 Type-C port.
Product Image

Specifications

  • MODEL

    NUC 13 Extreme Kit NUC13RNGi7

  • Product Collection

    NUC Kit with 13th Generation Intel Core Processors

  • Processor Included

    Intel Core i7-13700K Processor (30M Cache | up to 5.40 GHz)

  • Discrete Graphics

    Supports PCIe x16 Gen5 3-slot wide GPU

  • Board Number

    NUC13SBBi7

  • Board Chipset

    Intel Z690 Chipset

  • Supported Operating Systems

    Windows 11 | 64-bit

  • Marketing Status

    Launched

  • Launch Date

    Q4'22

  • CPU Total Cores

    16 Mode pre-installed.

  • CPU Total Threads

    24

  • Max Turbo Frequency

    5.40 GHz

  • Max Memory Size (dependent on memory type)

    64 GB

  • # of Memory Slots

    2

  • Memory Types

    DDR5 SODIMM

  • Max # of Memory Channels

    2

  • ECC Memory Supported ‡

    No

  • # of Internal Drives Supported

    5

  • M.2 Card Slot (storage)

    2x via PCH + 1x via CPU (NVMe)

  • Graphics Output

    2x Thunderbolt 4 | HDMI 2.1 TMDS compatible (4K60)

  • # of Displays Supported

    3

  • # of Thunderbolt Ports

    2x Thunderbolt 4

  • # of USB Ports

    11

  • USB Configuration

    Rear: 6x USB 3.2g2 | 2x TB4 (USB4);

    Front: 2x USB 3.2g1 Type-A |

    USB 3.2g2x2 Type-C

  • USB Revision

    3.2 Gen1 | Gen2 | Gen2x2 | USB4

  • Total # of SATA Ports

    4

  • Max # of SATA 6.0 Gb/s Ports

    4

  • RAID Configuration

    RAID-0 or RAID-1

  • Audio (back channel + front channel)

    (R) 7.1 digital | 3x 3.5mm + (F) 3.5mm

  • Integrated LAN

    10GbE (AQC113) + Intel® i226-V

  • Wireless Included

    Intel Killer Wi-Fi 6E AX1690 (i/s)

  • Bluetooth Version

    5.3

  • M.2 Card Slot (wireless)

    Killer Wi-Fi 6E AX1690i

  • Additional Headers

    FRONT_PANEL

  • Expansion Options PCIE Revision

    Gen5 | Gen4

  • Thermal Design Power

    125 W

  • Chassis Dimensions

    337 x 318 x 129mm

  • Board Form Factor

    PCIe

  • Intel Rapid Storage Technology

    Yes

  • Intel Optane Memory Supported

    Yes

  • Intel Virtualization Technology for Directed I/O (VT-d)

    Yes

  • Intel Virtualization Technology (VT-x)

    Yes

  • Intel Platform Trust Technology (Intel PTT)

    Yes

  • Intel AES New Instructions

    Yes
