AP201 ASUS PRIME CASE TG (BLACK/WHITE)
The ASUS Prime AP201 Tempered Glass version is a stylish 33-liter MicroATX case with tool-free side panels, with support for 360 mm coolers, graphics cards up to 338 mm long, and standard ATX PSUs.
- Optimized for Cooling: With support for 280 and 360mm radiators and up to six fans, the AP201 is primed to deal with the thermal onslaught of high-performance hardware.
- Industry-Leading Spatial Efficiency: Despite a 33L footprint, the AP201 supports ATX PSUs up to 180 mm long, graphics cards up to 338 mm long, custom liquid cooling, and various storage devices.

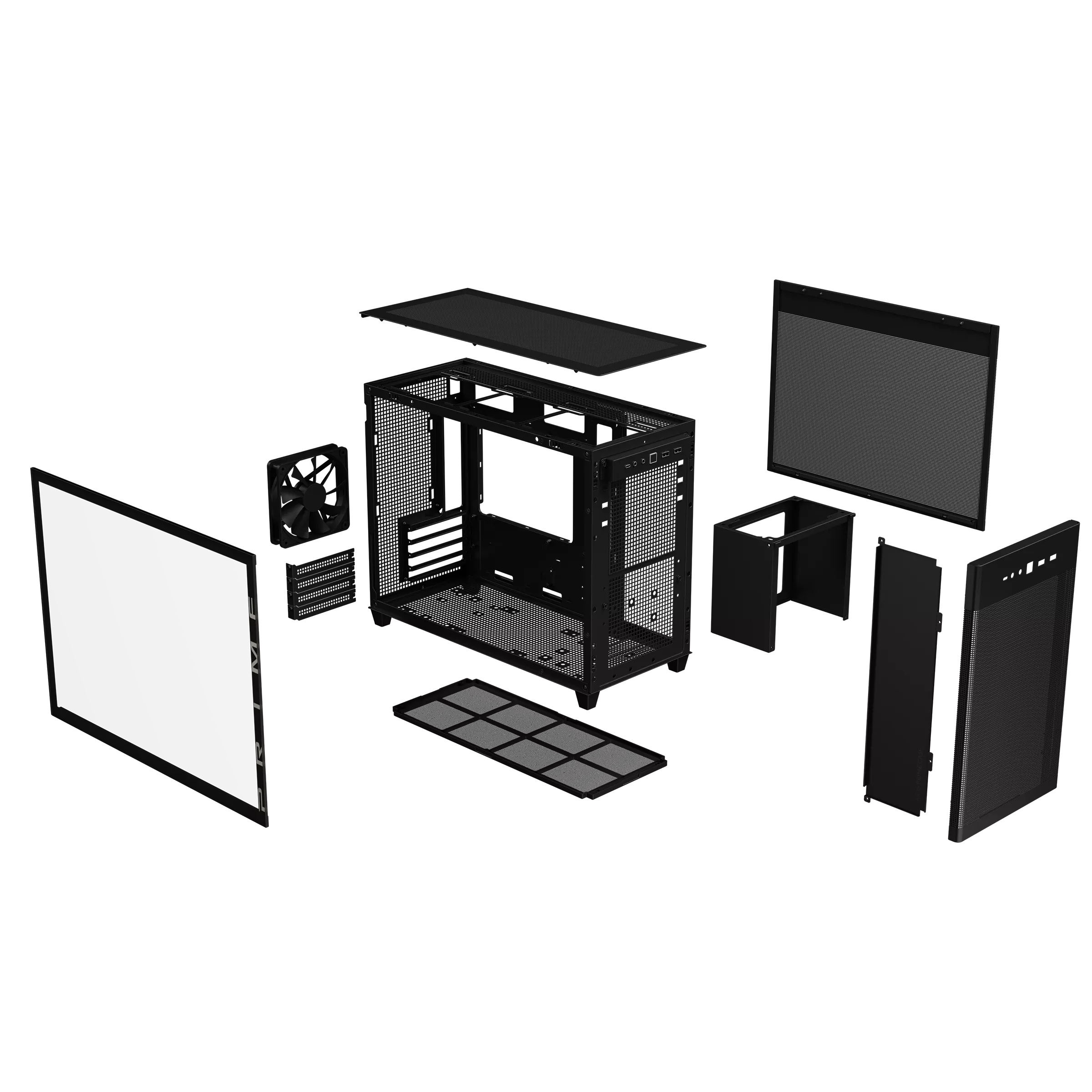

- Tool-Free Side Panels: A simple yet secure clip mechanism allows chassis side panels to be easily removed and resistant to accidental dislodging.

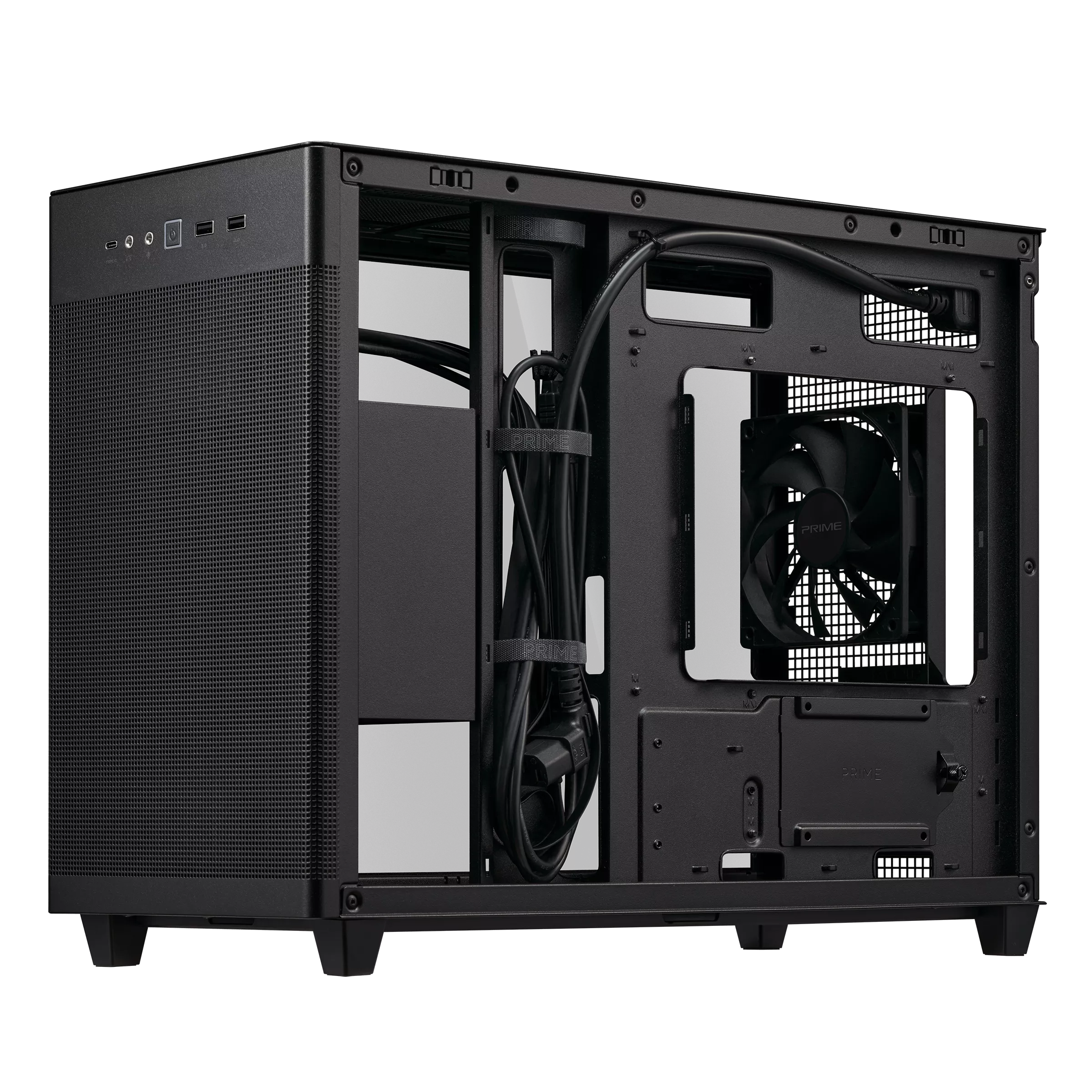

- Sizeable Cable-Management: The AP201 features an extended motherboard tray with strategically placed cutouts and a 32 mm gap to tuck cables out of sight.
- Front Panel USB Type-C® Support: The front panel of the AP201 features a USB 3.2 Gen 2 Type-C port, so users can enjoy transfer speeds of up to 10 Gbps.
Specifications
-
MODEL
ASUS Prime AP201 Tempered Glass MicroATX Case
-
Case Size
Small Tower
-
Motherboard Support
Micro-ATX
Mini-ITX -
Drive Bays
1 x 2.5" Bay
3 x 2.5"/3.5" Combo Bay -
Expansion Slots
4
-
Front I/O Port
1 x Headphone
1 x Microphone
2 x USB 3.2 Gen1
1 x USB 3.2 Gen2 Type C -
Radiator Support (Top)
120 mm
140 mm
240 mm
280 mm
360 mm -
Radiator Support (Rear)
120 mm
-
Cooling Support (Top)
3 x 120 mm
2 x 140 mm -
Cooling Support (Rear)
1 x 120 mm
-
Pre-installed Fans (Front)
None
-
Pre-installed Fans (Rear)
1 x 120 mm
-
Maximum CPU Cooler Height
170 mm
-
Maximum GPU Length
338 mm
-
Maximum PSU Length
140-180 mm
-
Removable Dust Filters
Bottom
-
Maximum Cable Management Space
32 mm
-
Dimensions
205 x 350 x 460 mm
-
Weight
5.8 Kg (Mesh Edition)
6.3 Kg (Tempered Glass Edition)
